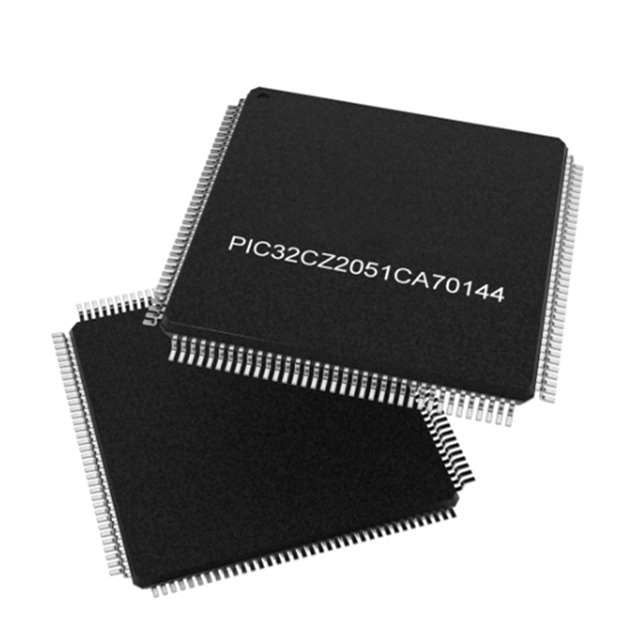

The PIC32CZ2051CA70144-I/Z8X is a microcontroller based on the high-performance 32-bit Arm® Cortex®-M7 processor, produced by Microchip. This MCU features a double-precision floating-point unit (FPU). The PIC32CZ CA70 device is a configurable instruction and data tightly coupled memory with a main frequency of up to 300MHz, up to 2048Kb of flash memory and up to 512Kb of multi-port SRAM, leveraging the advanced DSP capabilities of the core.

The PIC32CZ2051CA70144-I/Z8X microcontroller features a 10/100 Ethernet MAC supporting IEEE1588, a high-speed USB interface with an integrated PHY, dual CAN-FD, QSPI, CMOS image sensor interface, MediaLB, TDM/I2S (SSC), and multiple One serial interface and on-board hardware encryption, including TRNG, AES-256 and SHA-256 engines.

Product attributes

Core processor: ARM® Cortex®-M7F

Kernel specification: 32-bit

Speed: 300MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, SDHC, SPI, UART/USART, USB

Peripherals: Power-off detection/reset, encryption - AES, DMA, I2S, LVD, POR, PWM, RSA, SHA, TRNG, WDT

I/O count: 114

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 512K x 8

Voltage - Power supply (Vcc/Vdd) : 2.5V to 3.6V

Data converter: A/D 25x12b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Packaging: 144-TQFP (20x20)

The target applications of PIC32CZ2051CA70144-I/Z8X include industrial control, automotive electronics, security equipment and other scenarios with high requirements for performance and security.
