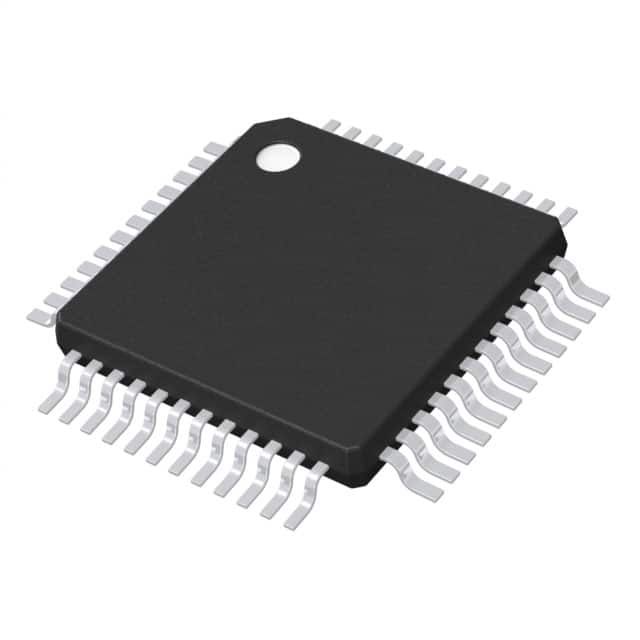

The STM32U585CIT6 Ultra-low power MCU is an advanced energy efficient microcontroller based on Arm® Cortex®-M33. The device meets the most demanding power/performance requirements of smart applications. Applications include wearables, personal medical devices, home automation and industrial sensors.

Device Specifications:

Core processor: ARM® Cortex®-M33

Kernel specification: 32-bit

Speed: 160MHz

Connectivity: CANbus, I²C, IrDA, LINbus, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG

Peripheral: Undervoltage detection/reset, DMA, motor control PWM, POR, PWM, WDT

Number of I/ OS: 37

Program storage capacity: 2MB (2M x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 784K x 8

Voltage - supply (Vcc/Vdd) : 1.71V ~ 3.6V

Data converter: A/D 11x12/14b SAR; D/A 2x12b

Oscillator type: external, internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/housing: 48-LQFP

Supplier Package: 48-LQFP (7x7)
