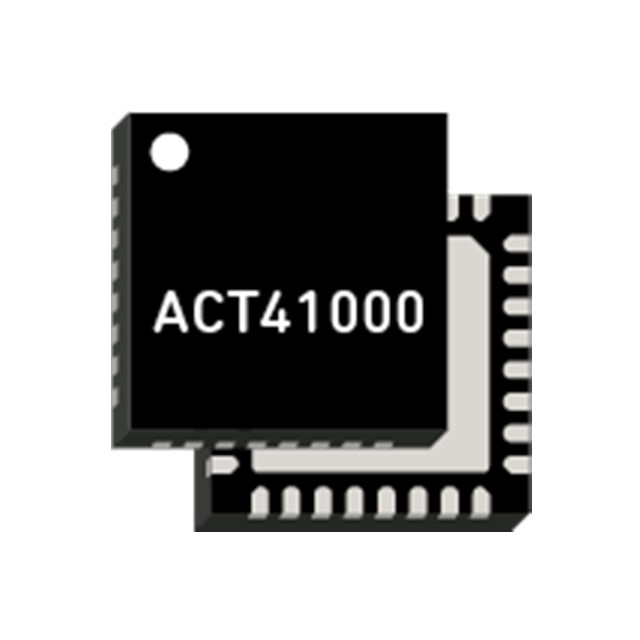

The ACT41000-104 is a programmable output, low noise, RFPoL(radio frequency point of Load) step-down regulator with an auxiliary bias power regulator. This synchronous buck regulator supports wide input voltages from 4.5 to 40 V and integrates both high-end and low-end MOSFETS. These 50mωrd son transistors are driven by optimised 5V self-bias for high efficiency to reduce power consumption.

ACT41000-104 Features:

Input voltage range: 4.5V to 40V

Programmable output, factory defaults

Output voltage range: 3V to 24V (12.5mV step)

Output current (limit) up to 4A (15.6mA step)

450kHz to 2.25MHz fixed frequency current mode with external clock synchronization and spread spectrum

5V/350mA self-biased buck converter with 20mA AUX LDO, programmable output voltage

I2C interface, Fast module +(Fm+, 1MHz)

Protective characteristic

UVLO, OVP, UVP (interrupted/blocked), OCP, TSD

Heat dissipation enhanced (5mm x 5mm) QFN package

Applications

RF PA (GaN/GaAs) drain bias/power with IDQ search function

General purpose servers, telecommunications and industrial power supplies

Telecommunication RF module

Radar system
