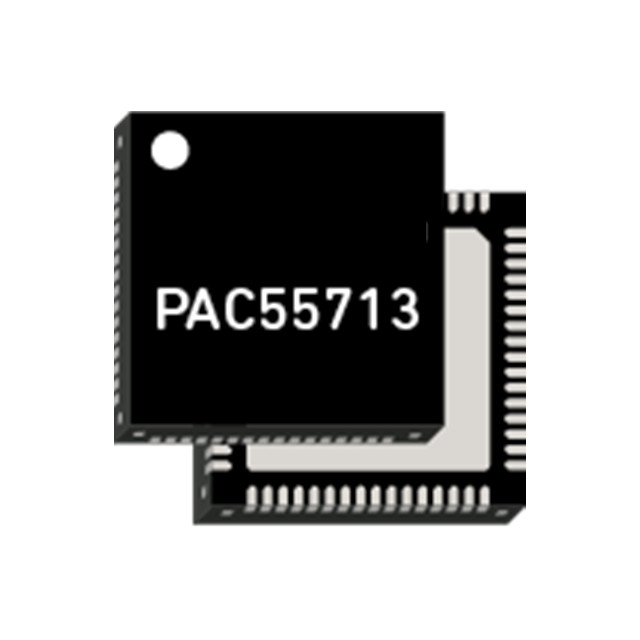

The PAC55713 power application controller is optimized for high-speed BLDC motor control. This controller integrates a 150MHz Arm Cortex®-M4F microcontroller, Active-Semi's proprietary multi-mode power manager ™, configurable analog front end ™, and dedicated power driver ™. This compact solution includes 128kB flash memory, 32kB SRAM, a 2.5MSPS analog-to-digital converter (supporting 24-sequence programmable automatic sampling), 3.3V I/O, flexible clock control, PWM/ general-purpose timer, and multiple serial communication interfaces.

The PAC55713 mainly has the following functions:

150MHz Arm Cortex M4F

128kB flash memory, 32kB SRAM

70V step-down /SEPIC DC/DC controller with external NCH FET

5V/200mA system power supply

Three high-side 70V, 1.2A (pull current) /1.8A (pour current) gate drivers

Three low-side 20V, 1.2A (pull current) /1.8A (sink current) gate drivers

VDS detection

Advanced period-by-cycle protection

Three differential PGA (x1 to x48)

Four single PGA (x1 to x48)

Programmable overcurrent turn-off

Hysteresis and blanking of programmable comparators

Simultaneously sample and maintain for three cycles

The application fields of PAC55713 are as follows:

Industrial BLDC motor control (pumps, fans, robots)

Electric and garden tools

Small household appliances

Electric mobility
