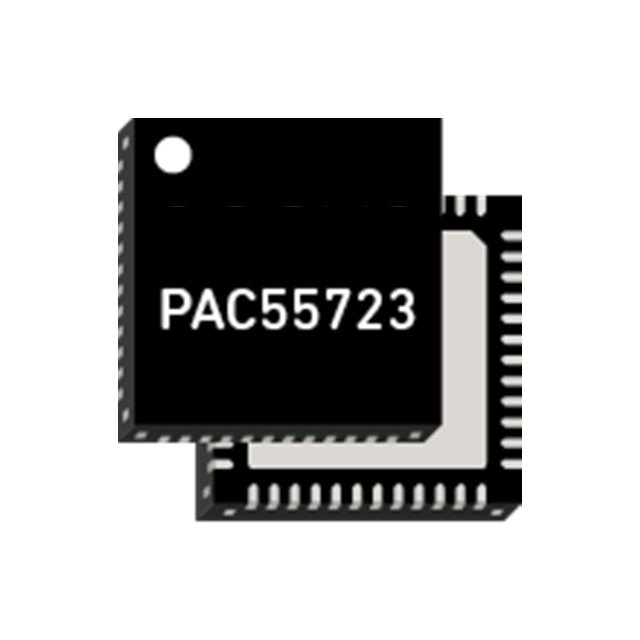

Qorvo's PAC55723QM expands its extensive and fully functional portfolio of Power Application Controller® (PAC) products - highly optimized system-on-chip (SOC) for controlling and power the next generation of smart energy appliances, devices and installations. The PAC55723QM provides footprint compatible mirror paths for customers currently using the PAC5523 and PAC5523A solutions by adding new features such as period-by-cycle (CBC), enhanced sampling and holding (s&H), and window watchdog timers.

Main features

150MHz ARM cortex M4F

128kB flash memory, 32kB SRAM

70V step-down /SEPIC DC/DC controller with external NCH FET

5V/200mA system power supply

Three high-side 70V 1.2A (pull current) /1.8A (pour current) gate drivers

Three low-side 20V 1.2A (pull current) /1.8A (sink current) gate drivers

VDS detection

UART/SPI, I2C and CAN interfaces

Power input voltage range: 5.2V to 70V

70V step-down power supply topology

Advanced period-by-cycle protection

Three differential PGA (1 to 48)

Four single PGA (1 to 48)

Programmable overcurrent turn-off

Hysteresis and blanking of programmable comparators

Sampling and holding simultaneously with three phases

TQFN, 48-pin package, 6mm ²

Lead-free and halogen-free, in compliance with the RoHS Directive

Application field

The PAC55723QM controller is suitable for industrial brushless DC motor control (such as pumps, fans, robots), power and gardening tools, small household appliances, electric transportation (such as scooters, wheelchairs), as well as warehouses and industrial robots. ‌
