Trade Name:Digital Isolators
Brand:ADI
Particular Year:24+
Package:SOIC-16
Delivery Date:New and Original
Stock: 2000pcs

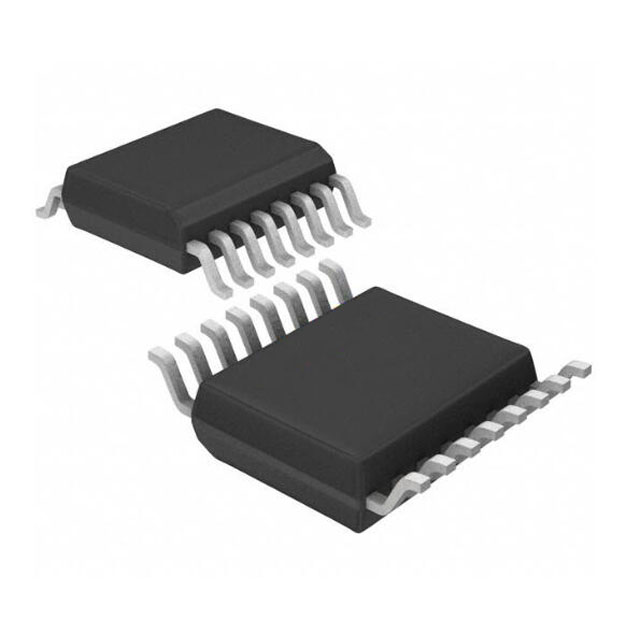

ADUM340E1WBRQZ - 5.7kV/3.0 kVrms Quad Channel Digital Isolators
Part Number: ADUM340E1WBRQZ
Package: SOIC-16
Type: Quad Channel Digital Isolators
Description: General Purpose Digital Isolators 5.7kV/3.0 kVrms 4-Channel 16-SOIC
Product Overviews
ADUM340E1WBRQZ is quad-channel digital isolators, it combining high speed, complementary metal-oxide semiconductor (CMOS) and back-to-back monolithic air core transformer technology, these isolation components provide outstanding performance characteristics and meet CISPR 32/EN 55032 Class B limits at 5 Mbps. The maximum propagation delay is 10 ns with a pulse width distortion of less than 3 ns at 5 V operation. Channel matching is tight at 3.0 ns maximum.
Product Features
High common-mode transient immunity: 180 kV/µs typical
High robustness to radiated and conducted noise
Low propagation delay
6.2 ns typical (10 ns maximum) for 5 V operation
Low dynamic power consumption, <1.65 mA/ch at 1 Mbps
2.25 V to 5.5 V level translation
150 Mbps maximum guaranteed data rate for 5 V operation
High temperature operation: 125°C
Applications
Serial peripheral interface (SPI) data converter isolation
RS-485 and controller area network with flexible data rate (CAN FD) industrial field bus isolation
PWM controller signal isolation
General-purpose multichannel isolation
