The AD4130-4BCPZ-RL7 is an ultra-low-power, high-accuracy measurement solution for low-bandwidth battery-powered applications. The fully integrated analogue front end (AFE) includes a multiplexer (up to 8 single-ended or 4 differential inputs), programmable gain amplifier (PGA), 24-bit sigma-delta (Σ-Δ) analogue-to-digital converter (ADC), on-chip references and oscillators, selectable filter options, intelligent sequencers, transducer bias and excitation options, diagnostics and, for improved battery operating life (more than 5 years on coin cell batteries), additional features, namely first-in-first-out (FIFO) and first-out (OUT). (5+ years for coin cell batteries), a first-in-first-out (FIFO) buffer, and duty cycle.

Product Features

Number of bits: 24

Sample rate (per second) 2,4k

Number of inputs: 8, 16

Input types: differential, pseudo-differential

Data interface: SPI

Configuration: MUX-PGA-ADC

Ratio - S/H:ADC: 0:1

Number of ADCs: 1 1

Configuration: Triangular Integral

Reference Type: External, Internal

Voltage - Supply, Analogue: 1.71V ~ 3.6V

Voltage - Supply, Digital: 1.65V ~ 3.6V

Characteristics: PGA

Operating Temperature: -40°C ~ 125°C

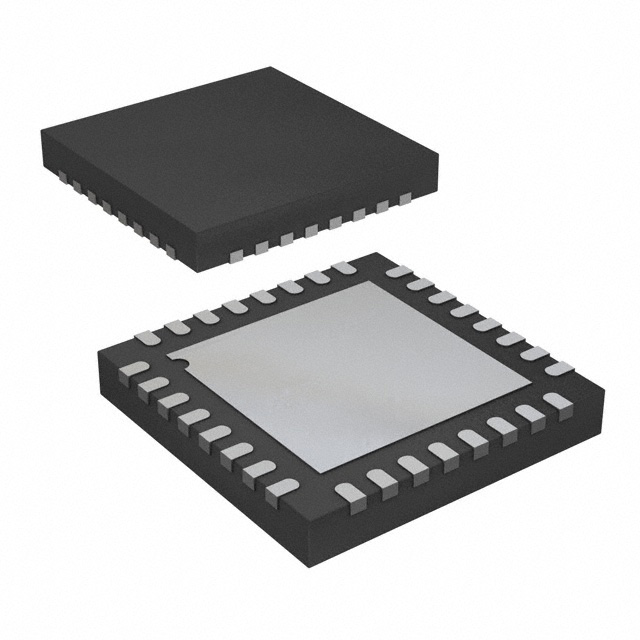

Package/Housing: 32-WFQFN Open, CSP

Supplier Device Package: 32-LFCSP (5x5)

Mounting Type: Surface Mount

Applications

Smart transmitters

Battery and harvester powered wireless sensor nodes

Portable instrumentation

Temperature measurement: thermocouples, RTDs, thermistors

Pressure measurement: bridge sensors

Healthcare and wearable devices
