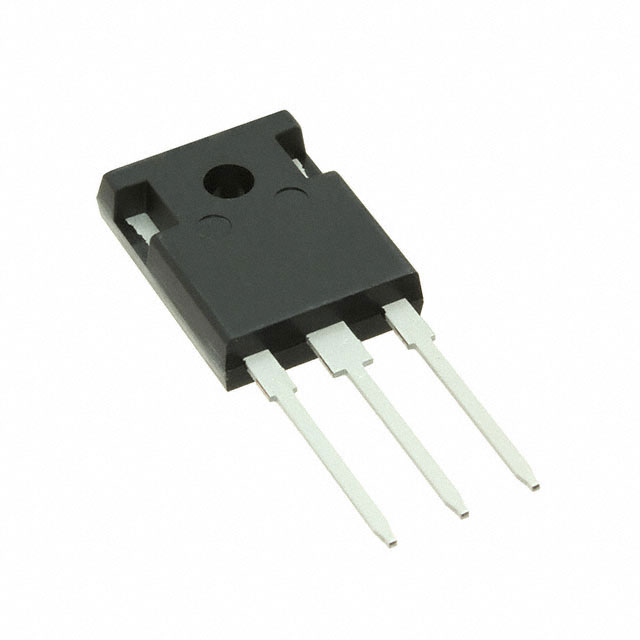

For picture reference, please see the specifications
< >

Commodity Model:IGW40N60H3FKSA1

Trade Name:IGW40N60H3FKSA1

Brand:INFINEON

Particular Year:24+

Package:TO-247-3

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IGW40N60H3FKSA1
Package
TO-247-3
Describe
High speed IGBT Transistors in Trenchand Fieldstop technology

Product Description

IGW40N60H3FKSA1 is High speed 600 V, 40 A single TRENCHSTOP™ IGBT3 in a TO247 package provides the best compromise between switching and conduction losses. The key feature of this family is a MOSFET-like turn-off switching behavior, leading to low turn off losses.


Feature

Low switching losses for high efficiency

Excellent VCE(sat) behavior thanks to the famous Infineon TRENCHSTOP™ technology

Fast switching behavior with low EMI emissions

Optimized diode for target applications, meaning further improvement in switching losses

Low gate resistor selection possible (down to 5Ω) whilst maintaining excellent switching behaviour

Short circuit capability 5µs

Offering Tj(max) of 175°C

Packaged with and without freewheeling diode for increased design freedom


Benefits

Low switching and conduction losses

Very good EMI behavior

Can be used with a small gate resistor for reduced delay time and voltage overshoot

High current density

Best-in-class 600 V IGBT efficiency and EMI behavior


Applications

Uninterruptible power supplies

Welding converters

Converters with high switching frequency


Associated Products

Model

Brand

Package

Quantity

Describe

STGB30M65DF2

ST

D2PAK

5000

Trench gate field-stop 650 V, 30 A low-loss M series IGBT in a D²PAK package

STGB10NB37LZT4

ST

D2PAK-3

5000

IGBT 440 V 20 A 125 W Surface Mount Type D2PAK

RGS80TSX2HRC11

ROHM

TO-247N-3

5000

1200 V, 40 A, field-stop trench-type IGBT transistor, TO-247N-3

RGS30TSX2DHRC11

ROHM

TO-247N-3

5000

1200V, 15A, trench-type field-stop IGBT transistor, TO-247N-3

AFGHL25T120RWD

ON

TO-247-3

5000

1200V, 25A, automotive IGBT transistor, TO-247-3

IXYP50N65C3

IXYS

TO-220-3

5000

650V, Auroral Transmission IGBT Transistor for 20-60kHz Switching, TO-220-3

IXYH80N90C3

IXYS

TO-247-3

5000

900V, 165A, High Speed IGBT Transistor for 20-50 kHz Switching, TO-247-3

FGY4L100T120SWD

ON

TO-247-4

5000

1200 V, Field Cutoff VII (FS7) IGBT Transistor, TO-247-4

FGY4L160T120SWD

ON

TO-247-4

5000

1200 V, Field Cutoff VII (FS7) IGBT Transistor, TO-247-4

RGS00TS65EHRYC13

ROHM

TO-247-3

1000

650V 50A Field Stop Trench IGBT
