The CY8C4146LQE-S273 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with Cortex™-M0+ CPUs, as well as AEC-Q100 compliance. It combines programmable and reconfigurable analogue and digital modules with flexible auto-routing capabilities. It combines a microcontroller with standard communication and timing peripherals, a capacitive touch sensing system (CapSense) with best-in-class performance, programmable general-purpose continuous-time and switched-capacitor analogue blocks, and programmable connectivity.

Product Attributes

Core Processor: ARM® Cortex®-M0+

Core specification: 32-bit

Speed: 48MHz

Connectivity: FIFO, I2C, IrDA, LINbus, Microwire, Smart Card, SPI, SSP, UART/USART

Peripherals: Power Down Detect/Reset, CapSense, DMA, LCD, POR, PWM, Temperature Sensor, WDT

Number of I/O: 34

Program memory capacity: 64KB (64K x 8)

Program Memory Type: Flash

RAM Size: 8K x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 5.5V

Data Converter: A/D 16x10b, 12x12b SAR; D/A 2x7b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 125°C (TA)

Grade: Automotive Grade

Qualification: AEC-Q100

Mounting Type: Surface Mount, Wettable Flanks

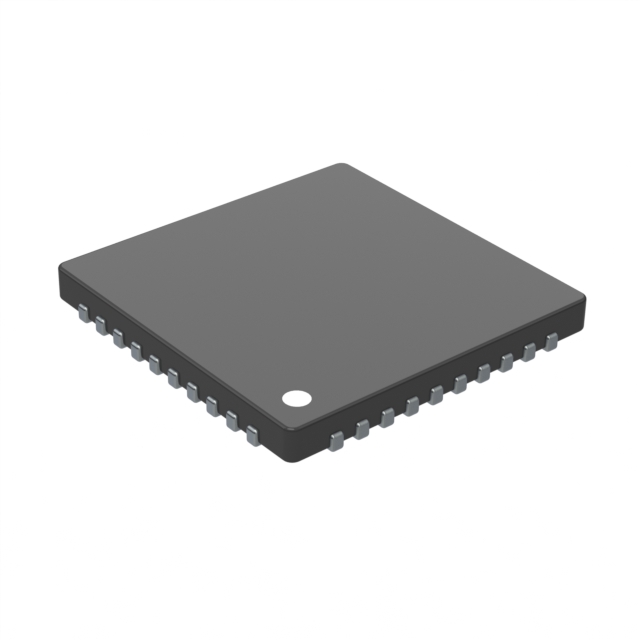

Supplier Device Package: 40-QFN (6x6)

Package/Housing: 40-UFQFN Exposed Pad
