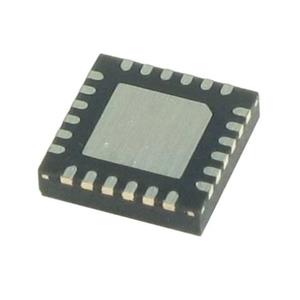

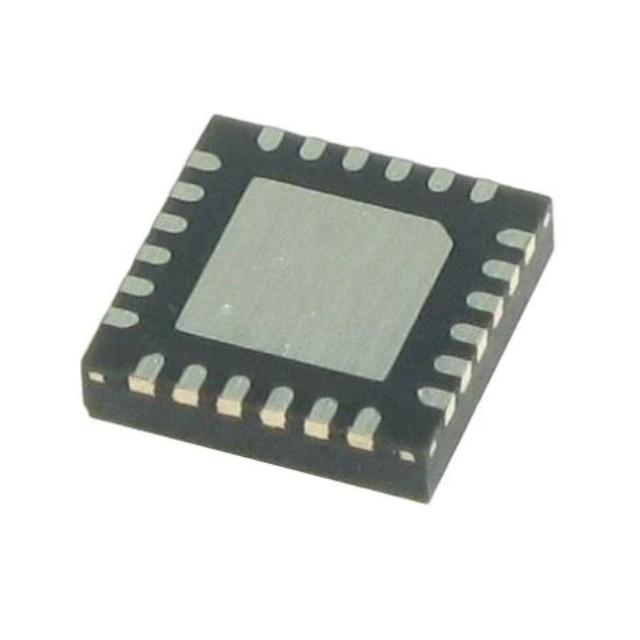

The CY8C4024LQA-S413 is a 32-bit ARM Cortex-M0+ microcontroller belonging to the PSoC 4000S series. This chip is specifically designed for low-power, high-performance embedded applications, supporting multiple peripheral interfaces and flexible configuration options.

CY8C4024LQA-S413 Features

High-performance processor: Based on the ARM Cortex-M0+ core, with a maximum clock speed of 24MHz.

Memory resources: 16KB flash memory and 2KB SRAM, suitable for a wide range of application requirements.

Rich Peripheral Interfaces: Supports GPIO, I2C, SPI, UART, and other interfaces.

High-Precision Analog Peripherals: Integrated 16-channel ADC, suitable for sensor interfaces and data acquisition.

Low-Power Design: Ideal for applications with stringent power consumption requirements, such as portable devices and IoT devices.

Package type: 24-pin QFN package, suitable for compact designs.

Operating temperature range: -40°C to +85°C, suitable for various operating environments.

CY8C4024LQA-S413 Specifications

Operating voltage range: 1.71V to 5.5V

Maximum operating frequency: 24MHz

Flash memory capacity: 16KB

SRAM capacity: 2KB

Number of I/O pins: 19

Number of smart I/O pins: 8

Package Type: 24-pin QFN

Operating Temperature Range: -40°C to +85°C

Application Scenarios

The CY8C4024LQA-S413 is suitable for a variety of application scenarios, including but not limited to:

Consumer Electronics: Such as smart home appliances, portable devices, etc.

Industrial Control: Used for sensor interfaces and automated equipment.

IoT Devices: Suitable for smart sensors and edge computing devices.
