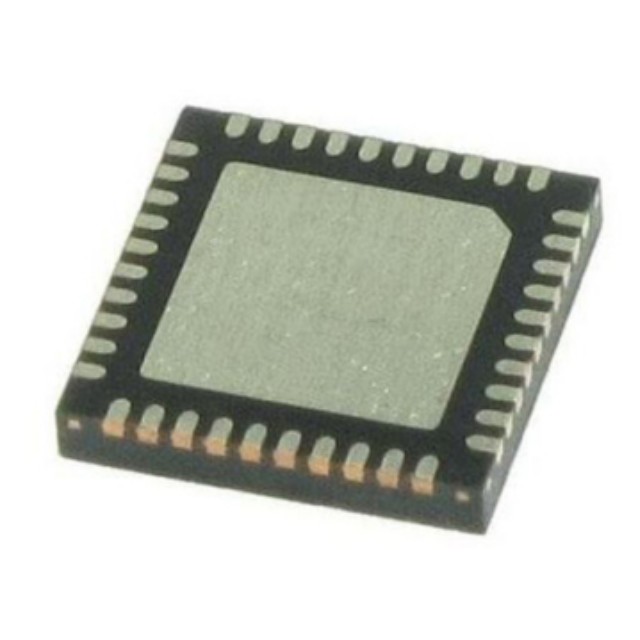

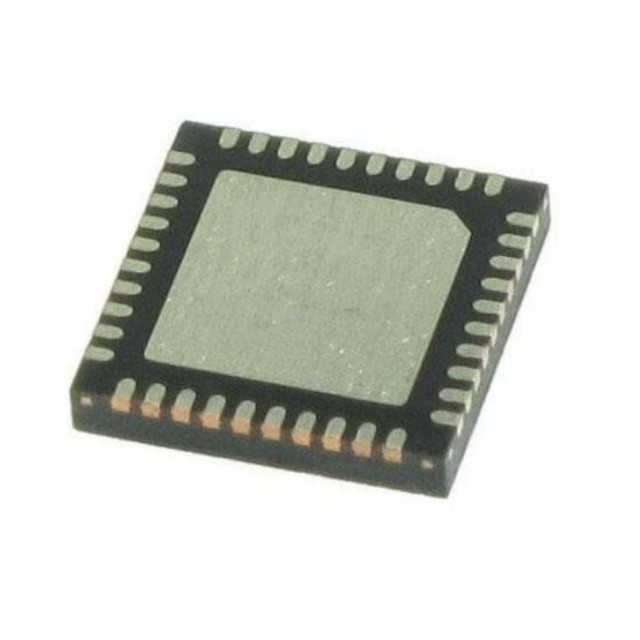

For picture reference, please see the specifications
< >

Commodity Model:CY8C4024LQS-S413

Trade Name:32-bit Microcontroller - MCU

Brand:Cypress

Particular Year:25+

Package:QFN-40

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Cypress
Model
CY8C4024LQS-S413
Package
QFN-40
Describe
ARM® Cortex®-M0+ null microcontroller IC 32-bit 24MHz 16KB (16K x 8) flash memory 40-QFN (6x6)

Product Description

The CY8C4024LQS-S413 is a 32-bit microcontroller (MCU) in the PSoC® 4 series from Cypress Semiconductor, based on the ARM® Cortex®-M0+ core, and is suitable for applications such as embedded control, capacitive touch sensing, and low-power Internet of Things (IoT). The chip is packaged in a 40-QFN (6×6mm) package, featuring 16KB Flash and 2KB SRAM, and supports various communication interfaces, making it widely used in consumer electronics, industrial automation, smart home, and other fields.


CY8C4024LQS-S413 Core Features

1. High-performance computing

24MHz ARM Cortex-M0+ core, supporting 32-bit single-core operations.

16KB Flash + 2KB SRAM, meeting the storage requirements for small embedded programs.

2. Rich peripheral interfaces

I²C, SPI, UART, LIN, IrDA, smart card interface, supporting multiple communication protocols.

Capacitive touch sensing (CapSense®), suitable for HMI applications such as buttons, sliders, and proximity detection.

3. Low-power design

Operating voltage 1.71V to 5.5V, suitable for battery-powered devices.

Multiple low-power modes (Sleep, Deep Sleep) for optimised energy management.

4. Industrial-grade reliability

Operating temperature range: -40°C to 85°C, meeting industrial environment requirements.

Internal oscillator reduces reliance on external components.


CY8C4024LQS-S413 Technical Specifications

Core Architecture: ARM Cortex-M0+ (32-bit)

Clock Speed: 24MHz

Flash Memory: 16KB (16K×8)

SRAM Memory: 2KB (2K×8)

I/O Count: 34

ADC Resolution: 10-bit (1 channel)

Communication Interfaces: I²C, SPI, UART, LIN, IrDA

Operating Voltage: 1.71V to 5.5V

Package: 40-QFN (6×6mm)

Operating Temperature: -40°C to 105°C
