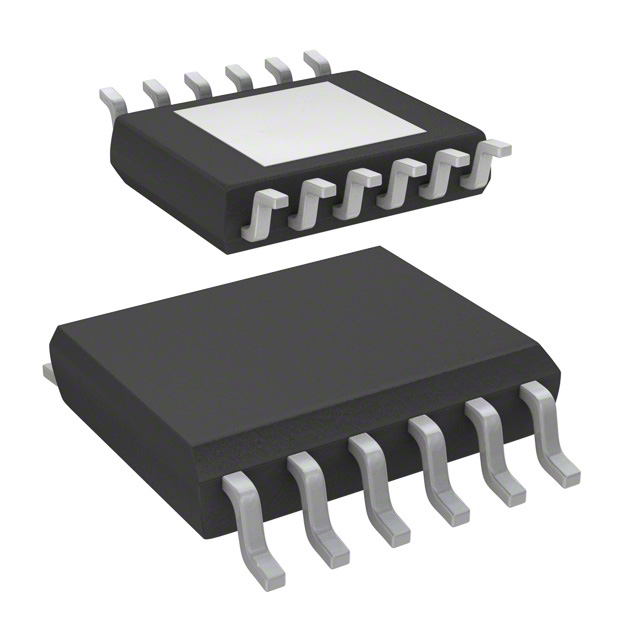

VND5E050MCJTR are dual high voltage side drivers manufactured using ST's proprietary VIPowerM0-5 technology in the PowerSSO-12 package. These devices are designed to drive 12 V automotive grounded loads and provide protection and diagnostic functions. They also implement 3 V and 5 V CMOS compatible interfaces to any microcontroller. The devices incorporate advanced protection features such as load current limiting, active management limiting for inrush and overload, auto restart for over-temperature shutdown with auto-restart, and active clamping for over-voltage.

Product Features

Switch Type: General Purpose

Number of Outputs: 2

Ratio - Input: Output: 1:1

Output Configuration: High End

Output Type: N-Channel

Interface: On/Off

Voltage - Load: 4.5V ~ 28V

Voltage - Supply (Vcc/Vdd): Not Required

Current - Output (Max): 19A 19A

Switching Resistance (Typ): 50 milliohms (Max)

Input Type: Non-Inverting

Function: With Auto Restart

Fault Protection: Current Limit (Fixed), Overheat, Overvoltage

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

Manufacturer's Equipment Package: PowerSSO-12™

Package/Housing: 12-PowerLSOP (0.154", 3.90 mm wide)

Applications

● All types of resistive, inductive, and capacitive loads

● For LED drivers
