The NCV7751DQR2G device is a 12-channel low-voltage side driver for automotive door terminals, with a driving capacity of up to 600 mA per channel. Output control is carried out through SPI communication, providing convenient fault reports for open-circuit loads (or ground short circuits), overloads and high-temperature conditions. In addition, all drivers of NCV7751DQR2G integrate output clamps for inductive loads. The NCV7751DQR2G adopts an SSOP−24 package with exposed pads and features excellent thermal performance.

Technical parameters

Switch type: Relay, solenoid driver

Output number: 12

Ratio - Input: Output: 1:12

Output configuration: Low-end

Output type: N channel

Interface: SPI

Voltage - Load: 36V (Maximum)

Voltage - Power Supply (Vcc/Vdd) : 3V to 5.5V

Current - Output (maximum value) : 600mA

On-resistance (typical value) : 1.3 ohms

Input type: -

Feature: -

Fault protection: Open-circuit load detection, over-temperature

Operating temperature: -40°C to 150°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

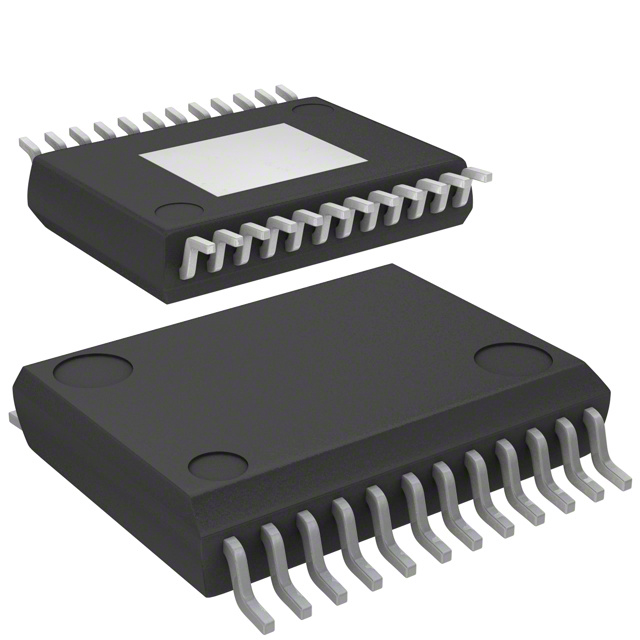

Supplier device packaging: 24-SSOP-EP

In addition, NCV7751DQR2G is suitable for automotive and other applications that require unique site and control change requirements, including:

• Automobile body control unit

• Automobile engine control unit

• Relay drive

• LED Drive

• Stepper motor
