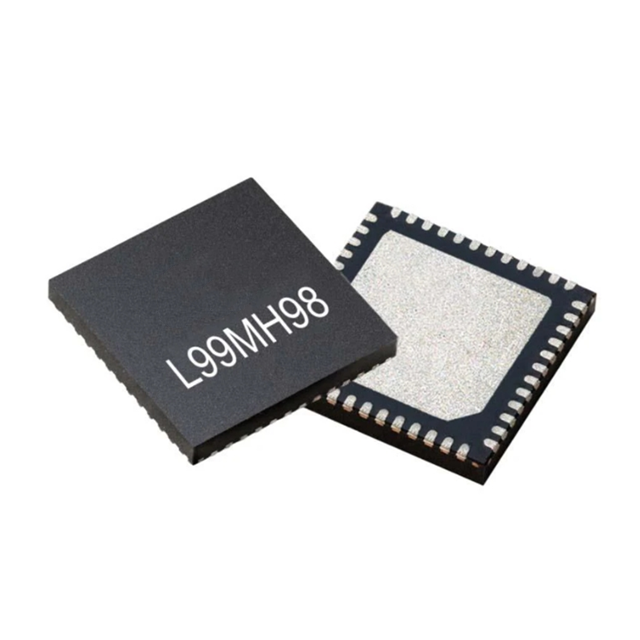

The L99MH98 is an integrated eight-channel half-bridge pre-driver specifically designed for controlling up to 16 N-channel MOSFETs. It is suitable for DC motor control applications, such as automotive electric seat control, etc.

The L99MH98 device adopts a 24-bit serial peripheral interface (SPI), allowing for independent configuration and control of eight half-bridges or four H-bridges. The SPI status register provides advanced diagnostic information, including power supply voltage monitoring, charge pump voltage monitoring, temperature warnings, and over-temperature shutdown.

Core parameters

Motor type - Stepper: Bipolar

Motor type - AC, DC: brushed DC

Function: Controller - Current management

Output configuration: Front driver - half bridge (8)

Interface: SPI

Technology: NMOS

Step resolution: -

Application: General

Current - Output: 120mA

Voltage - Power supply: 6V to 28V

Voltage - Load: -

Operating temperature: -40°C to 150°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Package/Housing: 48-VFQFPN (7x7)

Basic product number: L99MH98

Application scenarios

Seat control

Steering column and gas pedal adjustment

Sunroof, sliding door, window lifter, seat belt tensioner, cargo cover and gasket pump

Engine vibration compensation system

Electric lifting door

Central door lock
