Trade Name:STL26NM60N
Brand:ST
Particular Year:23+

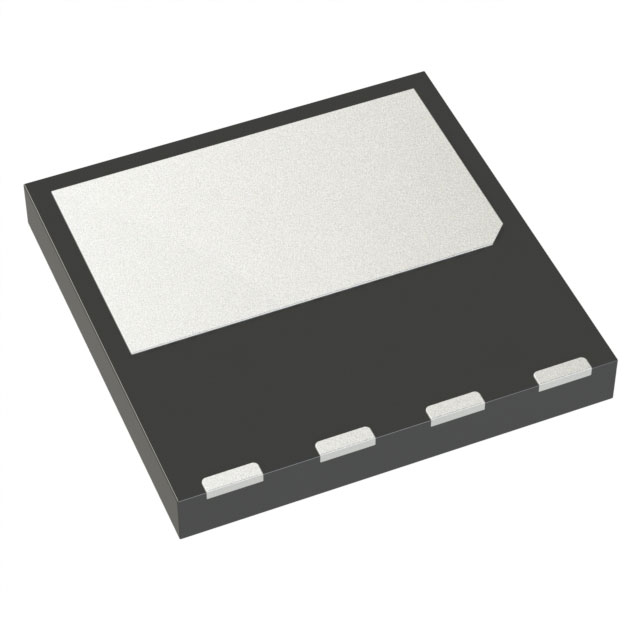

Package:8-PowerVDFN
Delivery Date:New and original
Stock: 2000pcs
The STL26NM60N is an N-channel power MOSFET developed using second-generation MDMESH™ technology. This revolutionary power MOSFET combines a vertical structure with the company's bar layout to produce the world's lowest on-resistance and gate charge. Therefore, it is suitable for the most demanding high-efficiency converters.
Product attribute
FET type: N channel
Technology: MOSFET (Metal oxide)
Drain-source voltage (Vdss) : 600 V
Current at 25°C - Continuous drain (Id) : 2.7A (Ta), 19A (Tc)
Drive voltage (Max Rds On, min Rds On) : 10V
On-resistance (Max.) at different ids and Vgs: 185 milliohm @ 10A, 10V
Vgs(th) (Max.) for different ids: 5V@250µA
Gate charge (Qg) at different Vgs (Max.) : 60 NC-@10 V
Vgs (Max.) : ±30V
Input capacitance (Ciss) at different Vds (Max.) : 1800 PF-@ 50 V
FET function: -
Power dissipation (Max) : 125mW (Ta), 3W (Tc)
Operating temperature: 150°C (TJ)
Mounting type: Surface mount type
Supplier device package: PowerFlat™ (8x8) HV
Package/case: 8-PowerVDFN
Model
Brand
Package
Quantity
Describe
INFINEON
D2PAK-7
1000
Fully optimized best-in-class performance Transistors at 120 V
INFINEON
8-PowerTDFN
1000
OptiMOS™ power MOSFETs 40 V logic level in PQFN 5x6 Source-Down package with very low RDS(on)
INFINEON
9-PowerTDFN
1000
OptiMOS™ power MOSFETs 60 V in PQFN 5x6 mm2 Source-Down package with industry leading RDS(on)
ST
8-PowerVDFN
2000
Surface Mount N-channel 600 V 21A (Tc) 150W (Tc) PowerFlat™ (8x8) HV
ST
8-PowerVDFN
2000
Surface Mount N-channel 600 V 21A (Tc) 140W (Tc) PowerFlat™ (8x8) HV
ST
8-PowerVDFN
2000
Surface mount N-channel 650 V 4.3A (Ta), 22.5A (Tc) 2.8W (Ta), 189W (Tc) PowerFlat™ (8x8) HV
ST
8-PowerVDFN
2000
Surface Mount N-channel 600 V 45A (Tc) 174W (Tc) PowerFlat™ (8x8) HV
