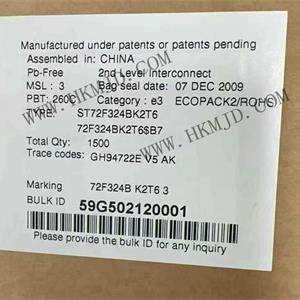

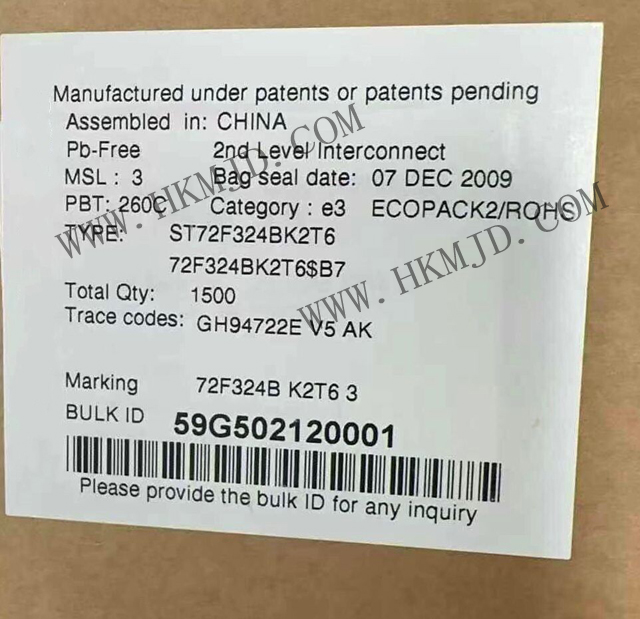

For picture reference, please see the specifications
< >

Commodity Model:ST72F324BK2T6

Trade Name:8-bit Microcontroller - MCU

Brand:ST

Particular Year:20+

Package:LQFP32

Delivery Date:New and Original

Stock: 12000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
ST72F324BK2T6
Package
LQFP32
Describe
8-bit microcontroller - MCU LQFP 32 7x7x1.4 1

Product Description

The ST72F324BK2T6 is a high-performance 8-bit microcontroller manufactured using STMicroelectronics' advanced production process, featuring low power consumption, high reliability, and high integration. This microcontroller is specifically designed for applications requiring high performance and a wide range of peripheral functions, making it ideal for use in industrial control, consumer electronics, and home appliance applications.


ST72F324BK2T6 Product Features

High-performance CPU core: The ST72F324BK2T6 is based on the ST7 8-bit CPU core, offering a processing speed of up to 8MHz, enabling rapid execution of various control tasks to meet the demands of complex applications.

Abundant storage resources: It features 8KB of flash memory (8K x 8) and 384 bytes of RAM, providing ample space for program storage and data processing.

Diverse peripheral functions: Integrated with multiple external interrupt inputs, programmable watchdog timer, low-voltage reset, low-voltage detection, and other peripheral functions, enhancing system reliability and flexibility.

Flexible communication interfaces: Supports SPI and SCI communication interfaces, facilitating data exchange and communication with external devices.

High-precision ADC: Built-in 12-channel 10-bit analogue-to-digital converter (ADC) capable of accurately sampling and converting various analogue signals.

Powerful timer functions: Equipped with 4 timers, including 1 window watchdog timer and 2 16-bit timers, enabling various timing and counting functions.

Low-Power Design: Features multiple low-power modes, including idle mode and power-down mode, allowing flexible selection based on actual application requirements to effectively reduce power consumption and extend the battery life of powered devices.

Wide Operating Voltage Range: Supports an operating voltage range of 3.8V to 5.5V, adapting to different power conditions and enhancing the device's versatility and reliability.

High reliability: Built-in multiple protection functions, such as short-circuit protection and overcurrent protection, enhance system stability and safety.


ST72F324BK2T6 Technical Specifications

Operating voltage: 3.8V to 5.5V

CPU clock speed: 8MHz

Flash memory capacity: 8KB (8K x 8)

RAM capacity: 384 bytes

ADC: 12 channels, 10-bit

Timers: 4 (including 1 window watchdog timer and 2 16-bit timers)

Communication interfaces: SPI, SCI

I/O pins: 24

Package type: LQFP-32 (7x7)

Operating temperature: -40°C to 85°C
