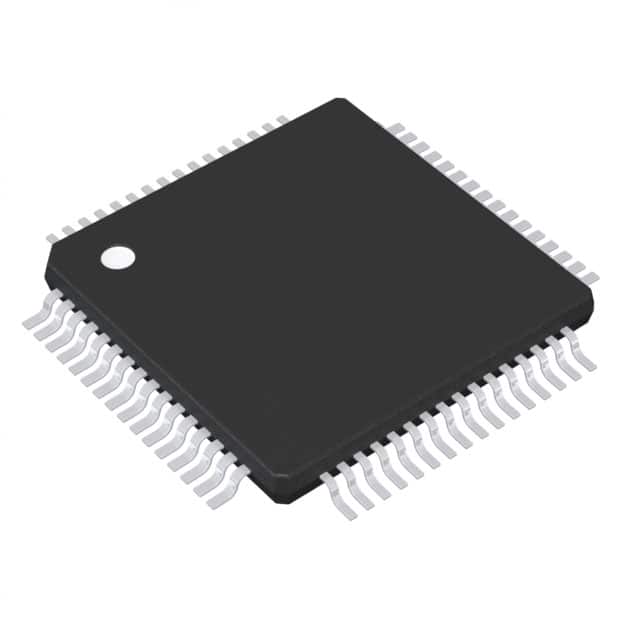

The TLE9180D31QK is an advanced gate driver IC specifically designed to control six external N-channel MOSFETs to form an inverter for high-current 3-phase motor drive applications in the automotive sector. The TLE9180D-31QK uses advanced high-voltage technology to support single-cell and hybrid battery systems with battery voltages of 12 V, 24 V and 48 V, even in harsh automotive environments, combined with high motor currents. As a result, the bridge, motor, and power-related pins can withstand voltages up to 90 V. The motor associated pins can even withstand negative voltage transients as low as -15 V without damage.

specification

Drive configuration: half bridge

Channel type: 3 phases

Number of drives: 6

Gate type: N channel MOSFET

Voltage - Power supply: 5.5V ~ 60V

Logic voltage - VIL, VIH: -

Current - Peak output (input, pull out) : 1A, 1A

Input type: non-inverting

Rise/fall time (typical value) : -

Operating temperature: -40°C ~ 150°C (TJ)

Class: Automobile class

Qualification: AEC-Q100

Mounting type: Surface mount type

Package/housing: 64-LQFP bare pad

Supplier device package: PG-LQFP-64-27

Basic product number: TLE9180
