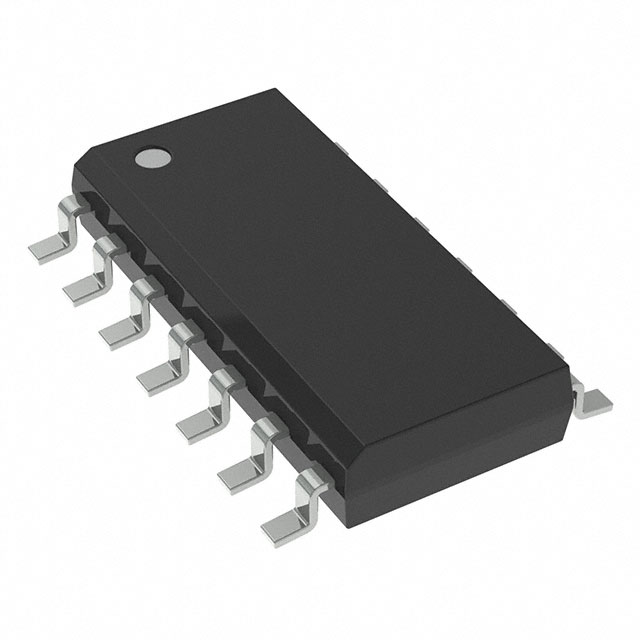

The 2ED21064S06J is a 650 V high-speed high-side high and low-side power MOSFET and IGBT gate driver with a typical 0.29 A pull current, 0.7 A sink current in a DSO-14 package.

Feature Description

Operating voltage (VS node) up to + 650 V

100 V negative VS transient immunity

Integrated ultra-fast, low-resistance bootstrap diode reduces BOM cost

Floating channel designed for bootstrap operation

Separate high-voltage and low-voltage pins for maximum creepage distance and electrical clearance

Separate logic and power grounds for shorter gate loops

Independent undervoltage lockout (UVLO) for both channels

200 nanosecond propagation delay

HIN, LIN logic inputs

25 V maximum supply voltage

Logic operating voltage up to -11 V on VS pin

Negative voltage tolerance of -5 V on inputs

Floating channel can be used to drive N-channel MOSFETs, SiC MOSFETs or high-side IGBTs

Advantages

Integrated bootstrap diode (BSD) - saves space, reduces BOM cost, smaller PCB, simpler design at lower cost

50% reduction in level shift losses

Excellent ruggedness and noise immunity to negative transient voltages (-100 V) on the VS pin

Application Areas

LED lighting

Battery formation

Electric vehicle fast charging

Motor control and drives

Consumer Electronics
