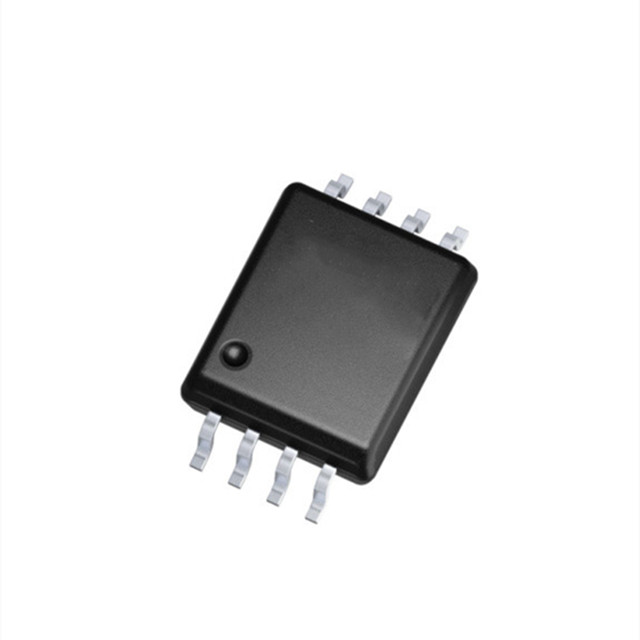

1EDI60H12AH EiceDRIVER™ 1200 V high-edge gate driver IC with typical 10A pull current and 9.4A fill current in DSO-8 package for IGBTs. The gate driver IC enables system-level high efficiency with excellent power density and consistent system robustness.

Product attribute

Technology: Magnetic coupling

Number of channels: 1

Propagation delay tpLH/tpHL (maximum) : -

Pulse width distortion (Max) : -

Rise/fall time (typical value) : 10ns, 9ns

Current - Peak output: -

Voltage - Forward (Vf) (typical value) : -

Voltage output power supply: 13V ~ 35V

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount type

Package/housing: 8-SOIC (0.295", 7.50mm wide)

Supplier device package: PG-DSO-8-59

Basic product number: 1EDI60
