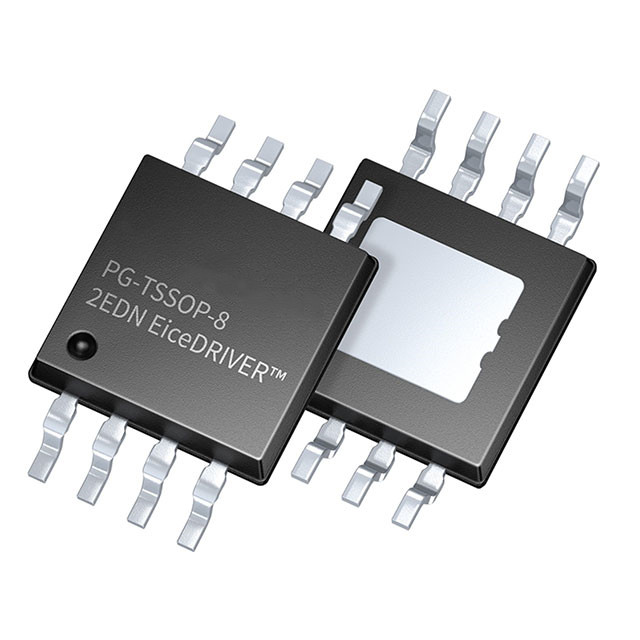

The EiceDRIVER™ 2EDN7434R device is a dual-channel low-side gate driver IC from Infineon. The device has two independent, non-isolated, low-side drive channels with a maximum peak output current of 5A. 2EDN series driver chips can be widely used in servers, telecommunications equipment, DC-DC converters, industrial SMPS, electric vehicle charging points, motor control, low-speed light electric vehicles, power tools, LED lighting and solar energy systems and other applications to improve the performance of power switching devices.

specification

Driver configuration: Low end

Channel type: Independent

Number of drives: 2

Gate type: N channel, P channel MOSFET

Voltage - Power supply: 4.5V ~ 20V

Logic voltage - VIL, VIH: 1.4V, 1.9V

Current - Peak output (input, pull out) : 5A, 5A

Input type: non-inverting

Rise/fall time (typical value) : 8.6ns, 6ns

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount type

Package/Housing: 8-TSSOP, 8-MSOP (0.118", 3.00mm wide)

Supplier device package: PG-TSOP-8

Basic product number: 2EDN7434
