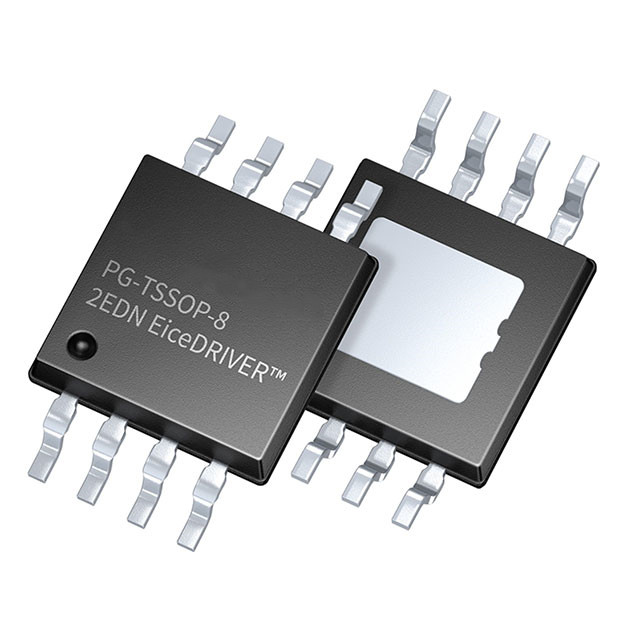

The 2EDN7534R is an EiceDRIVER™ 2EDN gate driver for MOSFETs and Wide Band Gap (WBG) switches. The EiceDRIVER™ 2EDN series supports 8-pin DSO, TSSOP, and WSON packages, as well as versatile, small 6-pin SOT23 and TSNP packages. With its high output current capability, precise timing, and short start-up and shutdown times, the 2EDN series is the first choice for many fast switching applications. Active output clamping reduces startup time for bootstrap designs.

Product Attributes:

Driver configuration: Low end

Channel type: Independent

Number of drives: 2

Gate type: N channel, P channel MOSFET

Voltage - Power supply: 4.5V ~ 20V

Logic voltage - VIL, VIH: 1.4V, 1.9V

Current - Peak output (input, pull out) : 5A, 5A

Input type: non-inverting

Rise/fall time (typical value) : 8.6ns, 6ns

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount type

Package/Housing: 8-TSSOP, 8-MSOP (0.118", 3.00mm wide)

Supplier device package: PG-TSOP-8

Basic product number: 2EDN7534
