The LTC7060HMSE half-bridge driver uses a half-bridge configuration to drive N-channel MOSFETs with supply voltages up to 100 V. It has tri-state PWM input logic independent of the supply. The unique floating architecture allows this gate driver to stabilise the output and be insensitive to ground noise. The symmetrical design supports half-bridge switching nodes as inverting or non-inverting input logic. With 0.8Ω pull-down and 1.5Ω pull-up capability, the strong output can easily drive the large gate capacitance of high voltage MOSFETs with very short transition times.

Features

Unique symmetrical floating gate driver architecture

High immunity to ±10 V ground differences between input and output ground

100 V maximum input voltage (independent of IC supply voltage) VCC

6 V ~ 14 V VCC Operating Voltage

4 V ~ 14 V Gate Driver Voltage

0.8Ω pull-down, 1.5Ω pull-up for fast turn-on/turn-off

Adaptive Pass-Through Protection

Programmable Dead Time

Tri-State PWM Input with Enable Pin

VCC UVLO/OVLO and floating supply UVLO

Dual drive N-channel MOSFETs

Open-drain fault indicator

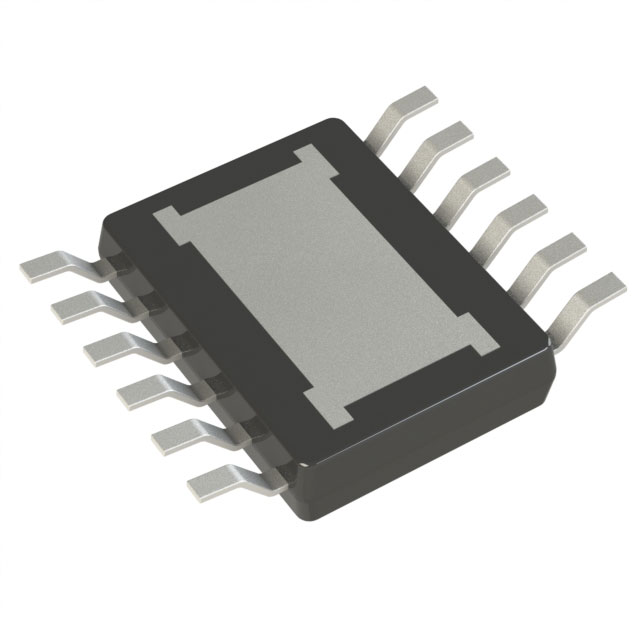

Thermally enhanced 12-pin MSOP available

Certified to AEC-Q100 for automotive applications

Applications

Automotive and industrial power systems

Telecom power systems

Half-bridge and full-bridge converters
