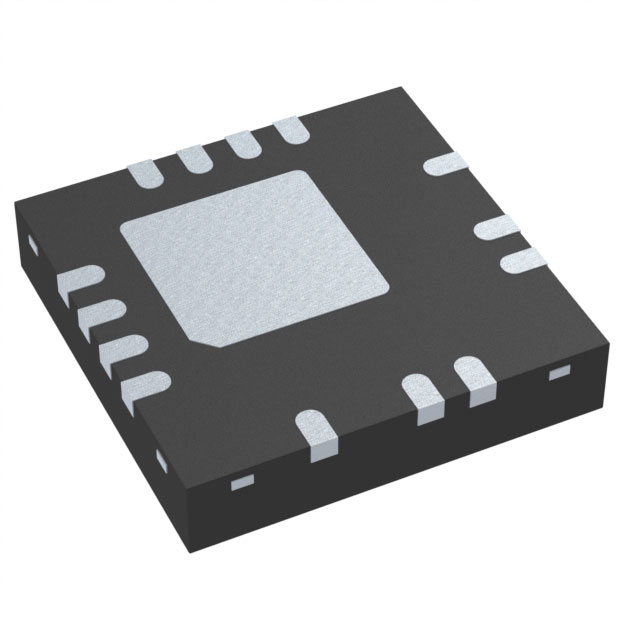

The IRS2008MTRPBF is a 200V level transition junction isolated MOSFET driver with associated high - and low-end reference output channels. Proprietary HVIC and latch-immune CMOS technologies enable a hardened monolithic structure. Logic inputs are compatible with standard CMOS or LSTTL outputs down to 3.3V logic. The output driver has a high pulse current buffer stage designed for minimal driver cross conduction.

Product attribute

Drive configuration: half bridge

Channel type: Synchronous

Number of drives: 2

Gate type: IGBT, N channel MOSFET

Voltage - Power supply: 10V ~ 20V

Logic voltage - VIL, VIH: 0.8V, 2.5V

Current - Peak output (input, pull out) : 290mA, 600mA

Input type: non-inverting

High voltage side voltage - Max (bootstrap) : 200 V

Rise/fall time (typical value) : 70ns, 30ns

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount type

Package/housing: 14-VFQFN bare pad

Supplier Package: 14-MLPQ (4x4)

Basic product number: IRS2008
