The MAX25301AATB/V are low noise automotive linear regulators with output currents up to 1A and output noise of only 7µVRMS output noise over the 10Hz to 100kHz range. These regulators maintain ±1% output accuracy over a wide input voltage range and require only 100mV input-to-output headroom at full load. 1200µA of no-load supply current is independent of the dropout voltage. The output voltage can be adjusted to a range of 0.6V to 5.3V with two external resistors. An active-high POK signal is also included for trouble-free load startup.

Product Characteristics

Output Configuration: Positive

Output Type: Programmable

Number of Regulators 1

Voltage - input (max.): 5,5 В

Voltage - output (min/fixed): 0,6 В

Voltage - output (max.): 5,3 В

Voltage drop (max.): 0,3V @ 1A 0,3V @ 1A

Current - Output: 1A

Current - quiescent (Iq): 2mA

PSRR: 70 dB ~ 40 dB (1 kHz ~ 1 MHz)

Control Functions: Enable, Reset Outputs

Protection Functions: Overcurrent, Overheat, Reverse Current

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

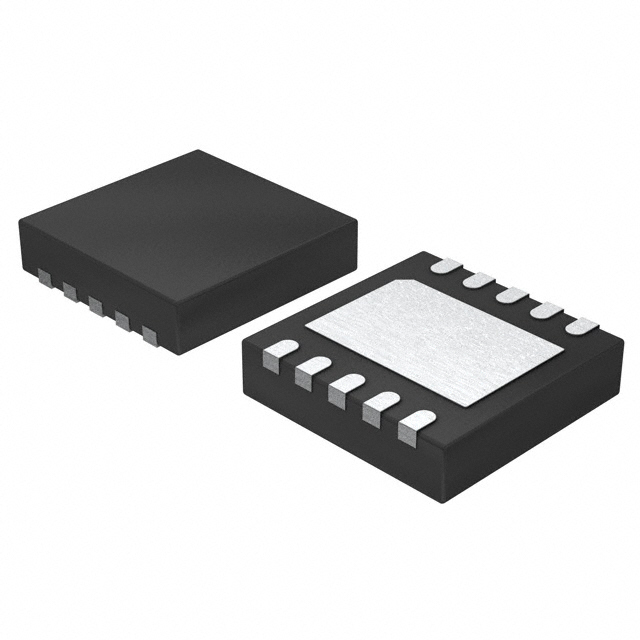

Package/Housing: 10-WFDFN with open area

Power Supply Included: 10-TDFN (3x3)

Applications

● Automotive Electronics

● Audio systems

● High-resolution data acquisition systems
