The LT3065HDD-5 is a micropower, low noise, low dropout (LDO) linear regulator that operates over a voltage range of 1.6 V to 45 V. The device delivers 500 mA of output current with a typical dropout of 300 mV. A single external capacitor provides programmable low-noise reference performance and output soft-start capability, with ±10% accuracy over a wide input voltage and temperature range.

Product Characteristics

Output Configuration: Positive

Output Type: Fixed

Number of Regulators: 1 1

Voltage - Input (Max): 45 В

Voltage - output (minimum/fixed): 5 В

Voltage drop (maximum): 0.51 V at 500 mA 0.51 V at 500 mA

Current - Output: 500 mA

Current - Static (Iq): 110 µA

Current - Supply (max): 25 mA

PSRR: 70 dB (120 Hz)

Control functions: current limit, turn on, power supply, soft start

Protection functions: overcurrent, overheat, reverse polarity

Operating Temperature: -40°C ~ 150°C

Mounting Type: Surface Mount

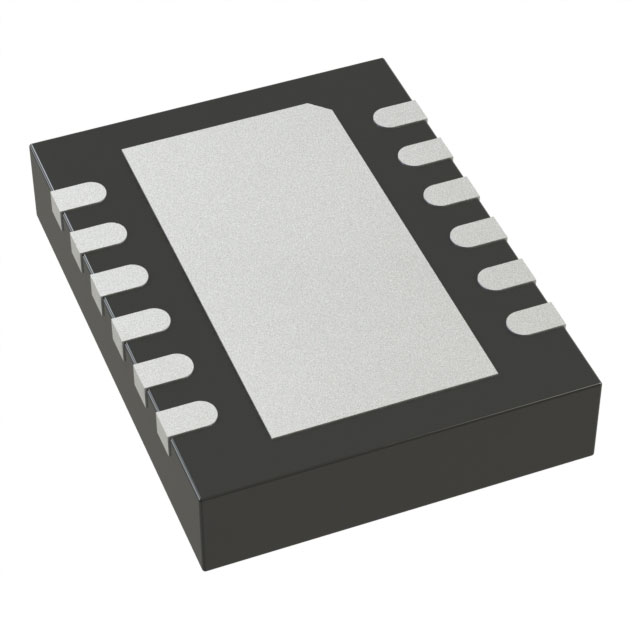

Package/case: 10-WFDFN with open area

Power Supply Included: 10-WFDFN (3x3)

Applications

● Battery powered systems

● Automotive power supplies

● Industrial power supplies

● Aerospace power supplies

● Portable Instruments
