The DRV8452PWPR is a wide-voltage, high-power, high-performance stepper motor driver that supports supply voltages up to 55V and integrated MOSFETs with 100mΩ HS + LS on-resistance capable of supporting currents up to 4A. The device uses internal current detection, eliminating the need for detection resistors, which reduces PCB area and costs. The DRV8452 built-in classifier supports up to 1/256 microsteps, and the automatic microstep mode interpolates the input STEP signal, thereby reducing the controller overhead.

Product Attributes:

Motor type - Step: bipolar

Motor type - AC, DC: Brushless DC (BLDC), brushless DC

Features: Driver - fully integrated, control and power level

Output configuration: Half bridge (4)

Interface: Step/direction

Technology: Power MOSFET

Step resolution: 1 ~ 1/256

Application: General purpose

Current - Output: 4A

Voltage - Power supply: 4.5V ~ 55V

Voltage - load: 4.5V ~ 55V

Operating temperature: -40°C ~ 125°C (TA)

Grade: -

Qualification: -

Mounting type: Surface mount type

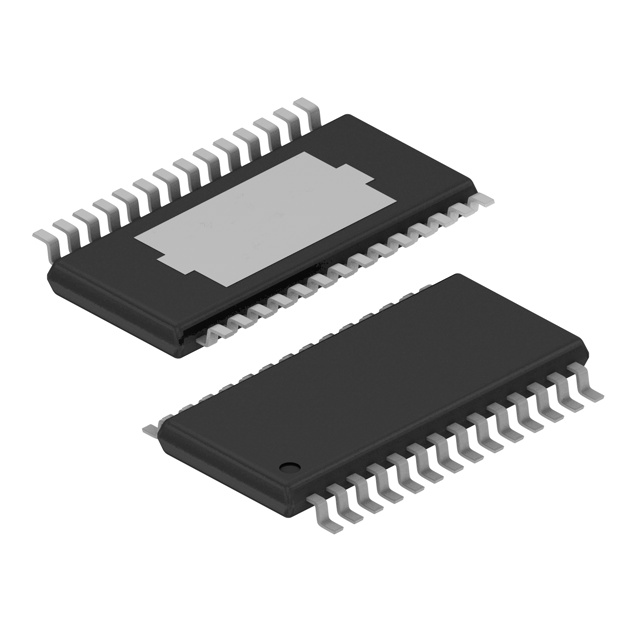

Package/Housing: 28-PowerTSSOP (0.173", 4.40mm Width)

Supplier device package: 28-HTSSOP
