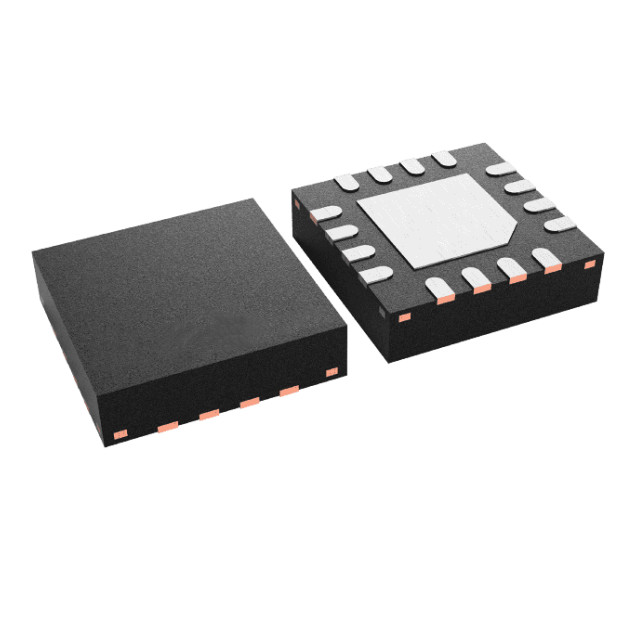

The DRV8213RTER is an integrated motor driver with n-channel H-bridge, charge pump, current detection output, current regulation and protection circuits. The triple charge pump allows the device to operate at voltages as low as 1.65V to accommodate a 1.8V power rail and low battery power. The charge pump integrates all capacitors and allows 100% duty cycle operation.

Features:

• N-channel H-bridge brushed DC motor driver

• 1.65V to 11V operating supply voltage range

• 240mΩ RDS(on) (high side + low side)

• High output current capability: 4A peak

• PWM control interface, switching frequency up to 100kHz

• Supports 1.8V, 3.3V, and 5V logical inputs

• Integrated current detection and regulation

• Analog Current Detection Output (IPROPI)

• The GAINSEL feature enables:

- High precision current detection down to 10mA

- Optimize RDS(ON) and overcurrent limits for different current ranges

• Configurable surge time (available in RTE package only)

• Internal charge pump

• Long battery life with low power sleep mode

- Maximum sleep current < 60nA

• Small package pin size

• Integrated protection features

- VM Undervoltage Lock (UVLO)

- Automatic Retry Overcurrent Protection (OCP)

- Thermal shutoff (TSD)

- Stall detection (available in RTE package only)

Applications

• Brushed DC motors, solenoids and relay drives

• Water and gas meters

• Electronic smart lock

• Electric toys and robot toys

• Infusion pumps and other portable medical equipment

• Electric toothbrush

• Beauty salon

• Portable printer

• Point of Sale (POS) equipment

• Other battery-powered DC motor applications
