The DRV8143SQRXYRQ1 device is a fully integrated half-bridge driver suitable for a variety of automotive applications. Designed with BiCMOS high-power process technology nodes, this single-chip power package device system provides excellent power handling and thermal performance, small package size and easy layout, but also provides EMI control, accurate current detection and diagnostic functions, and high robustness. The series offers the same pin functionality and expandable RON (current capability) to support different loads.

Product Attributes:

Motor type - Step: bipolar

Motor type - AC, DC: brushed DC

Features: Driver - fully integrated, control and power level

Output configuration: Half bridge

Interface: PWM, SPI

Technology: Bi-CMOS

Step resolution: -

Application: -

Current - Output: 20A

Voltage - Power supply: 4.5V ~ 35V

Voltage - load: 4.5V ~ 35V

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount, wets flanks

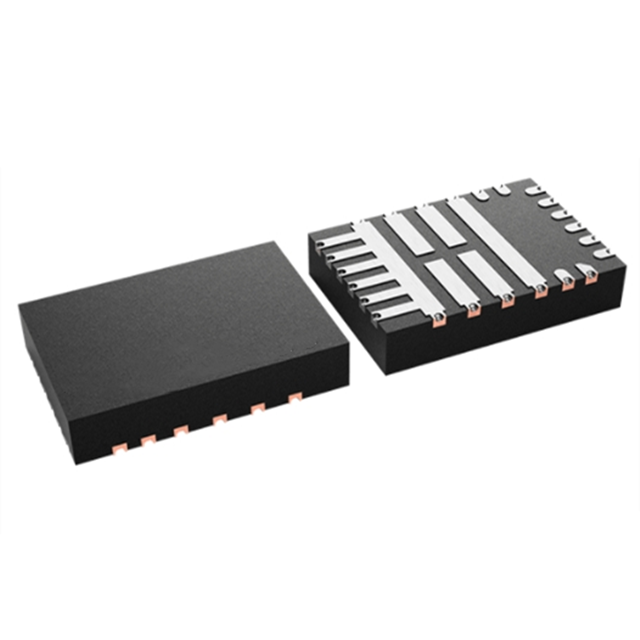

Package/case: 14-VFQFN

Class: Automobile class

Supplier Package: 14-VQFN-HR (3x4.5)
