The DRV8316CTQRGFRQ1 integrates three H-bridges with an absolute maximum voltage of 40V and an ultra-low RDS(ON) of 95mΩ (high side + low side) to provide high power drive capability for 12V automotive grade brushless DC motors. The DRV8316C-Q1 provides integrated current detection, eliminating the need for external detection resistors. The DRV8316C-Q1 integrates a power management circuit, including a voltage adjustable step-down regulator (3.3V/ 5V, 200mA) and an LDO (3.3V/30mA) that can be used to power external circuits.

Product Attributes:

Motor type - Step: polyphase

Motor Type - AC, DC: Brushless DC (BLDC)

Features: Driver - fully integrated, control and power level

Output configuration: Half bridge (3)

Interface: PWM

Technology: NMOS

Step resolution: -

Application: -

Current - Output: 8A

Voltage - Power supply: 4.5V ~ 35V

Voltage - load: 4.5V ~ 35V

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount type

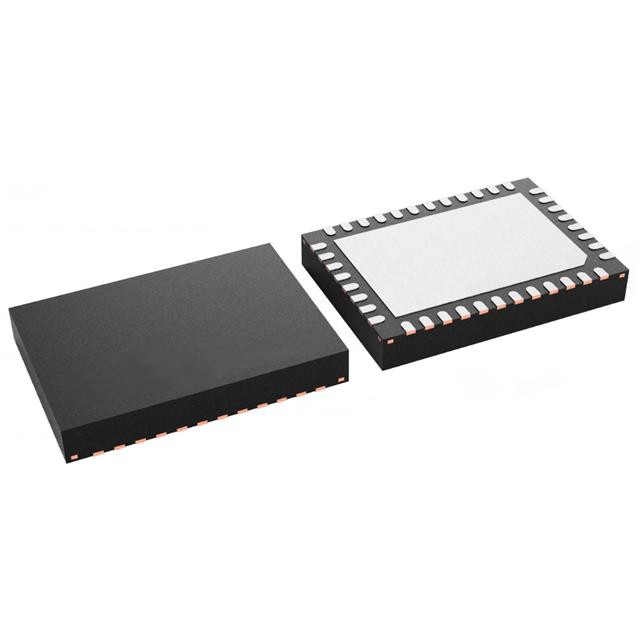

Package/housing: 40-VFQFN bare pad

Class: Automobile class

Supplier Package: 40-VQFN (7x5)
