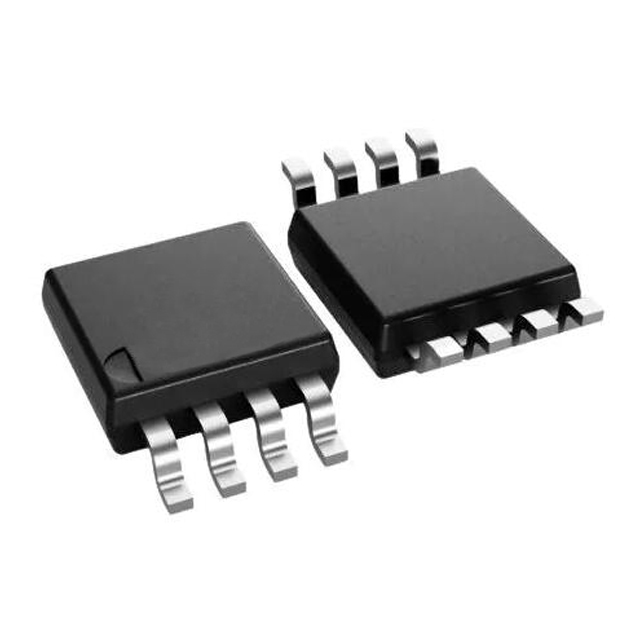

INA296B2QDGKRQ1 - 1 Circuit Single-Ended Current Sense Amplifier

Product Description

INA296B2QDGKRQ1 is –5 V to 110 V, Bidirectional, 1.1 MHz, 8 V/μs, Ultra-Precise Current Sense Amplifier. The high-precision current measurement is achieved through a combination of low offset voltage (±10 µV, maximum), small gain error (±0.01%, maximum) and a high DC CMRR (typical 166 dB). It operates from a single 2.7 V to 20 V supply, drawing 2.5 mA of supply current.

Product Features

Functional Safety-Capable

– Documentation available to aid functional safety system design

Wide common-mode voltage:

– Operational voltage: −5 V to +110 V

– Survival voltage: −20 V to +120 V

Bidirectional operation

High small signal bandwidth: 1.1 MHz (at all gains)

Slew rate: 8 V/µs

Step response settling time to 1%: 1 µs

Excellent CMRR: 166 dB

Applications

DC/DC converter

Battery management systems (BMS)

Fuel cell control unit

Smart junction box
