Trade Name:ISO7763FQDBQRQ1
Data Manual:ISO7763FQDBQRQ1.pdf
Brand:TI
Particular Year:23+

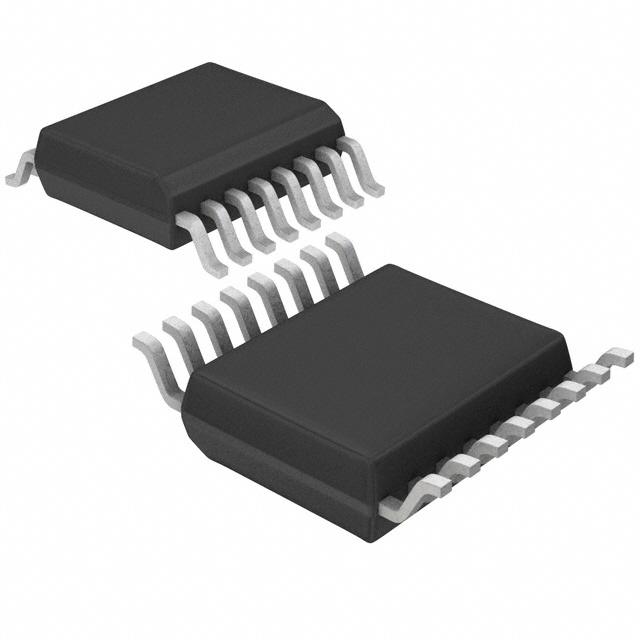

Package:16-SSOP
Delivery Date:New and Original
Stock: 5000pcs
ISO7763FQDBQRQ1 - High-speed, robust EMC, reinforced six-channel digital isolators
Product Description
ISO7763FQDBQRQ1 is high-performance, six-channel digital isolators with 5000-VRMS (DW package) and 3000-VRMS (DBQ package) isolation ratings per UL 1577. It provides highelectromagnetic immunity and low emissions at low-power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic-input and logic-output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier.
Product Features
100 Mbps data rate
Robust isolation barrier:
– >30-Year projected lifetime
– Up to 5000 VRMS isolation rating
– Up to 12.8 kV surge capability
– ±100 kV/μs Typical CMTI
Wide supply range: 2.25 V to 5.5 V
2.25V to 5.5V Level translation
Low power consumption, typical 1.4 mA per channel at 1 Mbps
Low propagation delay: 11 ns typical at 5 V
Robust Electromagnetic Compatibility (EMC):
– System-level ESD, EFT, and surge immunity
– ±8 kV IEC 61000-4-2 Contact discharge protection across isolation barrier
– Low emissions
Applications
Hybrid, electric and power train system (EV/HEV)
– Battery management system (BMS)
– On-board charger
– Traction inverter
– DC/DC converter
– Starter/generator
