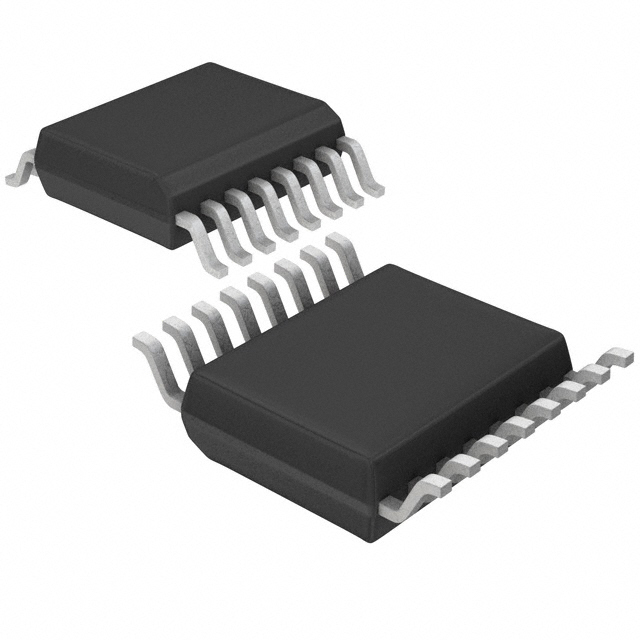

ISO7762QDBQQ1 - High-speed, robust EMC, reinforced six-channel digital isolators

Product Description

ISO7762QDBQQ1 is high-performance, six-channel digital isolators with 5000-VRMS (DW package) and 3000-VRMS (DBQ package) isolation ratings per UL 1577. It provides highelectromagnetic immunity and low emissions at low-power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic-input and logic-output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier.

Product Features

100 Mbps data rate

Robust isolation barrier:

– >30-Year projected lifetime

– Up to 5000 VRMS isolation rating

– Up to 12.8 kV surge capability

– ±100 kV/μs Typical CMTI

Wide supply range: 2.25 V to 5.5 V

2.25V to 5.5V Level translation

Low power consumption, typical 1.4 mA per channel at 1 Mbps

Low propagation delay: 11 ns typical at 5 V

Robust Electromagnetic Compatibility (EMC):

– System-level ESD, EFT, and surge immunity

– ±8 kV IEC 61000-4-2 Contact discharge protection across isolation barrier

– Low emissions

Applications

Hybrid, electric and power train system (EV/HEV)

– Battery management system (BMS)

– On-board charger

– Traction inverter

– DC/DC converter

– Starter/generator
