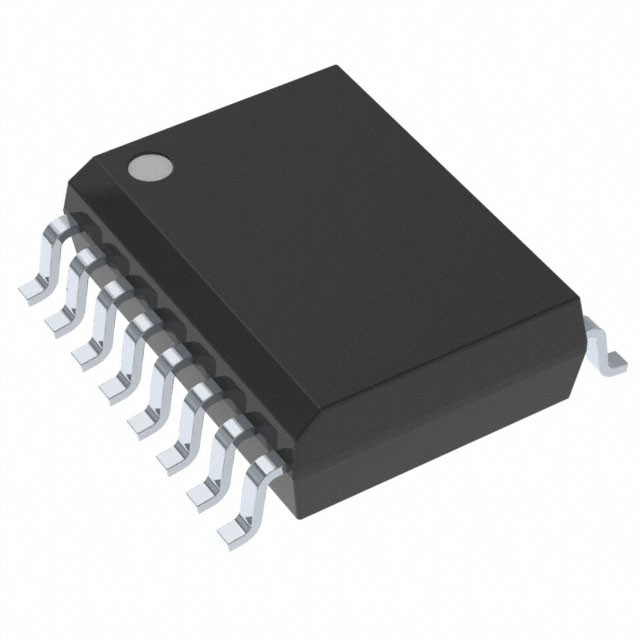

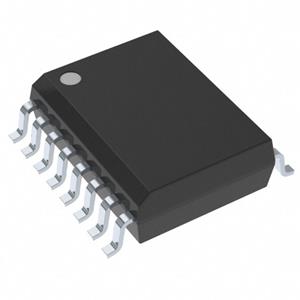

ISO7342FCDWR is Low-Power, Quad-Channel Digital Isolators. It provides galvanic isolation up to 3000 VRMS for 1 minute per UL 1577 and 4242 VPK per VDE V 0884-10. The devices have four isolated channels comprised of logic input and output buffers separated by a silicon dioxide (SiO2 ) insulation barrier.

Product Features

Signaling Rate: 25 Mbps

Integrated Noise Filter on the Inputs

Default Output High and Low Options

Low Propagation Delay: 31 ns Typical (5V Supplies)

3.3V and 5V Level Translation

Wide Temperature Range: –40°C to 125°C

70KV/μs Transient Immunity, Typical (5V Supplies)

Robust Electromagnetic Compatibility (EMC)

– System-level ESD, EFT, and Surge Immunity

– Low Emissions

Operates from 3.3V and 5V Supplies

Applications

Optocoupler Replacement in:

– Industrial Fieldbus

– Profibus

– Modbus

– DeviceNet Data Buses

– Servo Control Interface

– Motor Control

– Power Supplies

– Battery Packs
