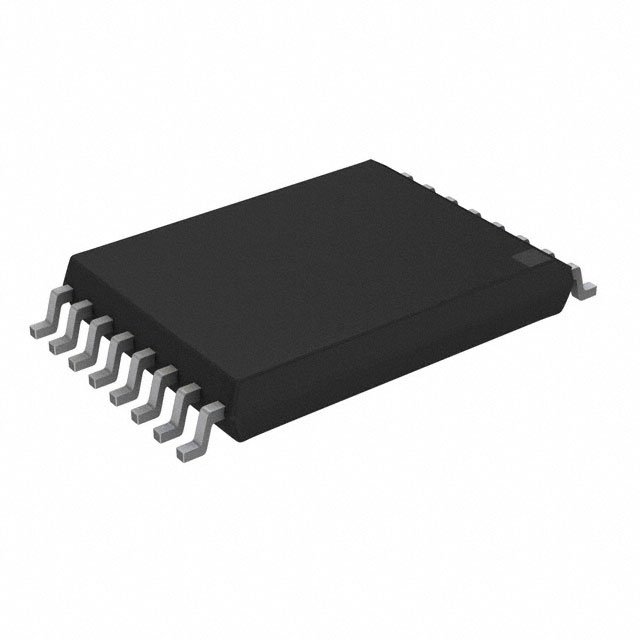

ISO7820FDWWR - High-Performance, 8000 VPK Reinforced Dual Channel Digital Isolator

Product Description

ISO7820FDWWR is a high-performance, dual-channel digital isolator with 8000 VPK isolation voltage. This device has reinforced isolation certifications according to VDE, CSA, CQC, and TUV. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/O’s. Each isolation channel has a logic input and output buffer separated by silicon dioxide (SiO2 ) insulation barrier.

Product Features

Signaling Rate: Up to 100 Mbps

Wide Supply Range: 2.25 V to 5.5 V

2.25 V to 5.5 V Level Translation

Wide Temperature Range: –55°C to 125°C

Low Power Consumption, Typical 1.7 mA per Channel at 1 Mbps

Low Propagation Delay: 11 ns Typical (5 V Supplies)

Industry leading CMTI(Min): ±100 kV/μs

Robust Electromagnetic Compatibility (EMC)

System-Level ESD, EFT, and Surge Immunity

Low Emissions

Isolation Barrier Life: > 25 Years

Applications

Industrial Automation

Motor Control

Power Supplies

Solar Inverters

Medical Equipment

Hybrid Electric Vehicles
