Service Telephone:86-755-83294757

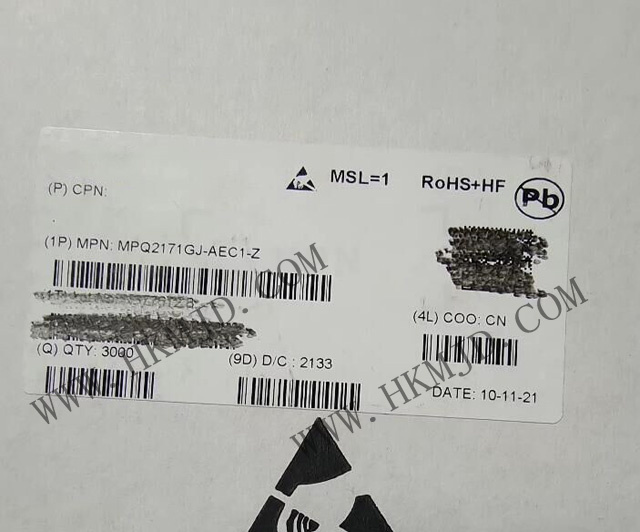

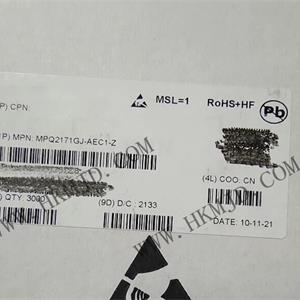

Trade Name:MPQ2171GJ-AEC1
Data Manual:MPQ2171GJ-AEC1.pdf
Brand:MPS
Particular Year:23+
Package:SOT-23-8
Delivery Date:New original
Stock: 2000pcs
The MPQ2171GJ-AEC1 is a monolithic buck switching converter with integrated internal power MOSFETs. In the input voltage range from 2.5V to 5.5V, the MPQ2171 delivers 1A continuous output current with excellent load and linear regulation. The output voltage can be adjusted as low as 0.6V. The MPQ2171 is suitable for a wide range of applications, including automotive entertainment systems, dashboards, communication devices and portable meters.
Product Attributes:
Function: Depressurize
Output configuration: positive
Topology: depressurize
Output type: Adjustable
Output number: 1
Voltage - input (min) : 2.5V
Voltage - input (Max) : 5.5V
Voltage - output (min/fixed) : 0.6V
Voltage - output (Max) : 5V
Current - Output: 1A
Frequency - Switch: 2.6MHz
Synchronous rectifier: Yes
Operating temperature: -40°C ~ 125°C (TJ)
Mounting type: Surface mount type
Package/Housing: SOT-23-8 Thin, TSOT-23-8
Supplier device package: TSOT-23-8
Basic product number: MPQ2171
Model
Brand
Package
Quantity
Describe
ADI
20-TSSOP
3000
Switching regulator IC Positive or negative adjustable 2.6V 2 output 1.35A (switch), 2.1A (switch) 20-TSSOP
ADI
18-DFN
3000
Low noise dual power switch regulator with boost and negative output charge pump
Renesas
WLCSP
3000
Flexible step-up/down switching regulator that extends device battery life
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
Monolithic Power Systems (MPS) is a high-performance analog semiconductor company headquartered in San Jose, California. Founded in 1997, the company has three core strengths; deep system-level and application knowledge, strong analog design expertise…
MPQ7221GRE-AEC1-P
The MPQ7221GRE-AEC1-P is a 16-channel LED driver that operates over a wide input voltage (VIN) range of 4.5 V to 16 V.MP8030GQJ-Z
The MP8030GQJ-Z 802.3af/at/bt PoE PD power converter features a high efficiency flyback/forward controller. The PD interface on the device provides all the features of IEEE 802.3af/at/bt.MPQ4430GLE-5-AEC1
The MPQ4430GLE-5-AEC1 is a frequency-adjustable (350kHz to 2.5MHz) synchronous buck switching converter with integrated up-and-down power MOSFET tubes. It uses a current control mode to provide a 3.5A (or below) efficient output with fast loop respons…MPQ4431GLE-33-AEC1
The MPQ4431GLE-33-AEC1 device is a low static current synchronous buck converter with integrated frequency tunable (350kHz to 2.5MHz) for both high - and low-end power MOSFETs. It uses a current control mode and can provide up to 1A efficient output c…MPQ4431GLE-5-AEC1
The MPQ4431GLE-5-AEC1 is a frequency-adjustable (350kHz to 2.5MHz) synchronous buck switching regulator with integrated high - and low-end power MOSFETs. It uses a current control mode and can provide up to 1A efficient output current with fast loop r…MPQ4409GQBE-AEC1
The MPQ4409GQBE-AEC1 device is a 24V, 2.2MHz efficient synchronous buck converter with built-in power MOSFETs, designed to comply with AEC-Q100 certification. The MPQ4409 offers a very compact solution with 900mA continuous output current over a wide …Contact Number:86-755-83294757
