The TMUXHS221LVNKGR is a high-speed bi-directional 2:1 or 1:2 multiplexer or demultiplexer optimised for USB 2.0 and eUSB2 LS, FS, and HS signals and is suitable for a wide range of high-speed interfaces with data rates up to 3 Gbps. Suitable for a wide range of high-speed interfaces with data rates up to 3 Gbps, it supports differential or single-ended CMOS signals from -0.3 to 3.6 V. The ideal high-speed performance minimises attenuation of USB 2.0 or eUSB signals.

Product Features

Switching Solutions: SPST - Open/Closed Circuit

Multiplexer/Demultiplexer Solutions: 1:2, 2:1

Number of circuits 4

Switching Resistance (max): 8 Ohm 8 Ohm

Channel to Channel Matching (ΔRon): 200 milliohms

Voltage - Supply, Single (V+): 1.62V ~ 1.98V

Switching Time (Ton, Toff) (Max): 32µs, 500 ns

Bandwidth -3db: 3.3 GHz

Leakage Current (IS (Off)) (Max): 12 µA

Crosstalk: -41 dB @ 240 MHz

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

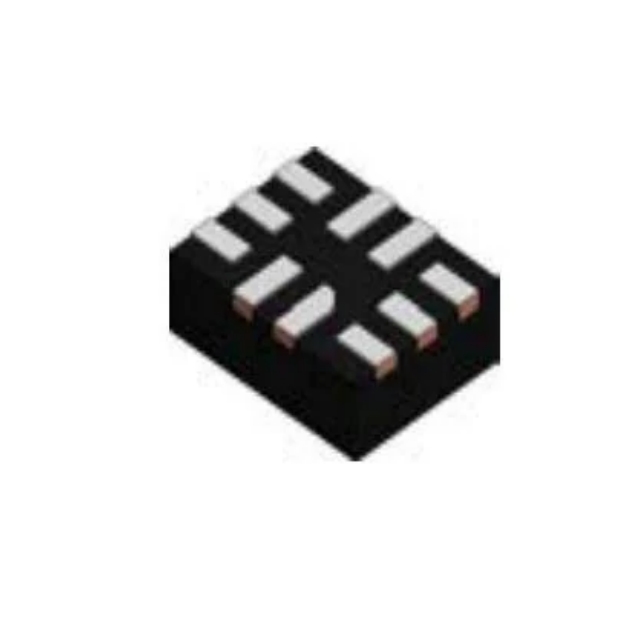

Package/case: 10-UFQFN

Delivery includes: 10-UFQFN (1.4x1.8)

Applications

● Personal computers and laptops

● Gaming, TV, home theatre and entertainment

● Data centre and enterprise computing

● Medical applications

● Test and measurement

● Factory automation and control

● Mobile phones and tablets
