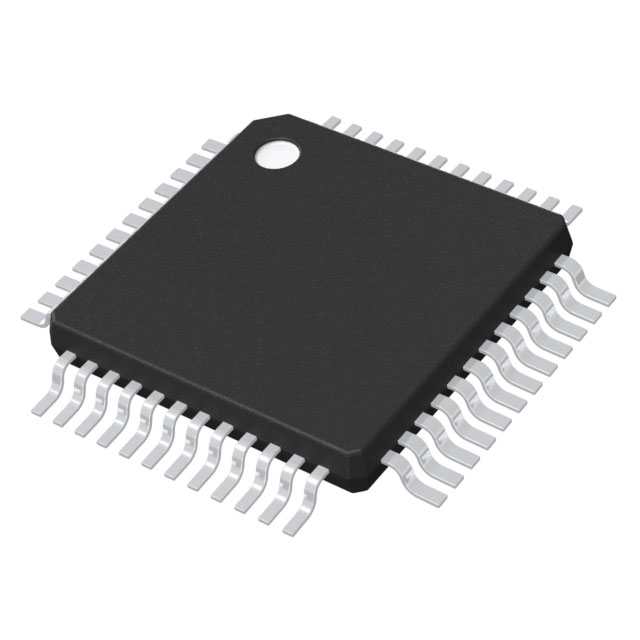

The PIC18F55Q24-I/PT microcontroller features up to 32KB of memory, 4KB of data SRAM, and 512B of EEPROM, a vector interrupt controller with fixed latency for interrupt handling, a system bus arbiter, Direct Memory Access (DMA) functionality, a general-purpose asynchronous transceiver (UART) supporting asynchronous, DMX-512, Digital Addressable Lighting Interface (DALI®) and Local Interconnect Network (LIN) protocols, serial peripheral interfaces (SPI) and I2C.

Product attributes

Product Category: 8-bit Microcontroller -MCU

Core: RISC

Programme memory size: 32 kB

Data RAM size: 2 kB

Package / Case: TQFP-48

Maximum clock frequency: 64 MHz

ADC resolution: 10 bit

Number of inputs/outputs: 43 I/Os

Supply voltage - min: 1.8 V

Supply voltage - max: 5.5 V

Mounting style: SMD/SMT

Data bus width: 8 bit

Minimum operating temperature: - 40 C

Maximum operating temperature: + 85 C

DAC resolution: 8 bit

Data Ram Type: SRAM

Data ROM size: 512 B

Data Rom Type: EEPROM

I/O Voltage: 1.62 V to 5.5 V

Interface Type: I2C, SPI, UART

Number of ADC Channels: 30 Channel

Number of timers/counters: 3 x 8 bit, 8 x 16 bit

Processor family: PIC18F-Q24

Programme memory type: Flash

Number of factory packages: 250

Applications

Sensor interface

Real-time control

Communication
