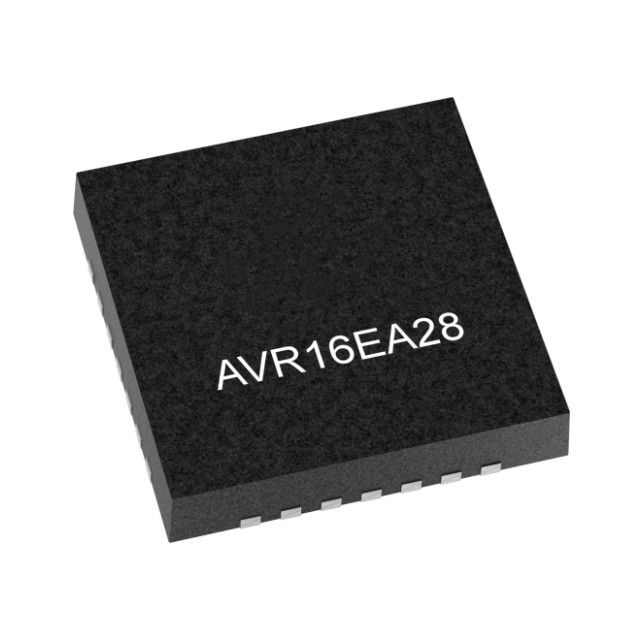

The AVR16EA28-I/STX microcontroller adopts an AVR CPU with a hardware multiplier, and its clock operating speed reaches 20MHz. The AVR EA series features a flexible low-power architecture, including an event system, precise analog subsystems and advanced digital peripherals. Its functions and technical specifications are as follows:

AVR® CPU functions

The operating frequency is as high as 20MHz

Single-cycle I/O register access

Two-level interrupt controller

Two-period hardware multiplier

Power supply voltage range: 1.8V to 5.5V

Technical Specification

Core processor: AVR

Kernel specification: 8 bits

Speed: 20MHz

Connection capabilities: I2C, IrDA, SMBus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 23

Program storage capacity: 16KB (16K x 8)

Program memory type: Flash memory

EEPROM capacity: 512 x 8

RAM size: 2K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 5.5V

Data converter: A/D 20x12b D/A 1x10b

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 28-VQFN (4x4)

The AVR16EA28-I/STX MCU has 16KB of flash memory, 2KB of SRAM and 512 B of EEPROM. This microcontroller is mainly used in a variety of application scenarios, including industry, consumer electronics, home appliances, automobiles, sensor nodes, etc. Its low power consumption design and high real-time control capabilities make it particularly suitable for closed-loop control system design and safety monitoring equipment ‌
