The M38239GCFP is an 8-bit CMOS microcontroller belonging to the 740/38000 series, packaged in an 80-pin QFP (14×20mm). The chip integrates 48KB QzROM program memory and 2KB RAM, operates at a frequency of 10MHz, and is suitable for applications such as industrial control, consumer electronics, and embedded systems.

Product Features (M38239GCFP)

Processor Architecture

8-bit 740 core, supporting 71 machine instructions

Minimum instruction execution time: 0.4μs (at 10MHz clock speed)

Storage Resources

Program memory: 48KB QzROM (supporting 32-byte × 2-block correction functionality)

Data memory: 2KB RAM

No EEPROM

Peripherals and Interfaces

Analogue functions: 8-channel 8-bit/10-bit ADC

Communication interfaces: UART/USART, SIO (serial I/O)

Human-machine interaction: Integrated LCD driver controller (supports 1/2 to 1/4 duty cycle, 32-segment output)

Timing and monitoring: Watchdog timer (WDT), 5 timers (3 × 8-bit + 2 × 16-bit)

Power supply and power consumption

Wide Voltage Supply: 1.8V to 5.5V (adjustable based on operating mode)

Low Power Design:

Low-speed mode (32kHz) with power consumption as low as 18μW

High-speed mode (8MHz) with typical power consumption of 18mW

Package and Reliability

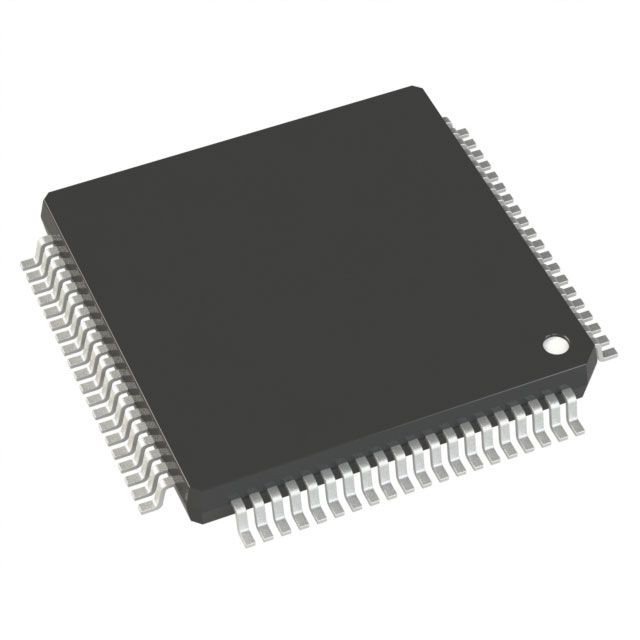

Package: 80-QFP (14×20mm, surface mount)

Operating Temperature: -20°C to 85°C

Compliant with RoHS standards (some versions contain lead)

Typical Applications (M38239GCFP)

Industrial Control: PLC, sensor interfaces

Consumer Electronics: Home appliance control panels, LCD display drivers

Embedded Systems: Low-power device management
