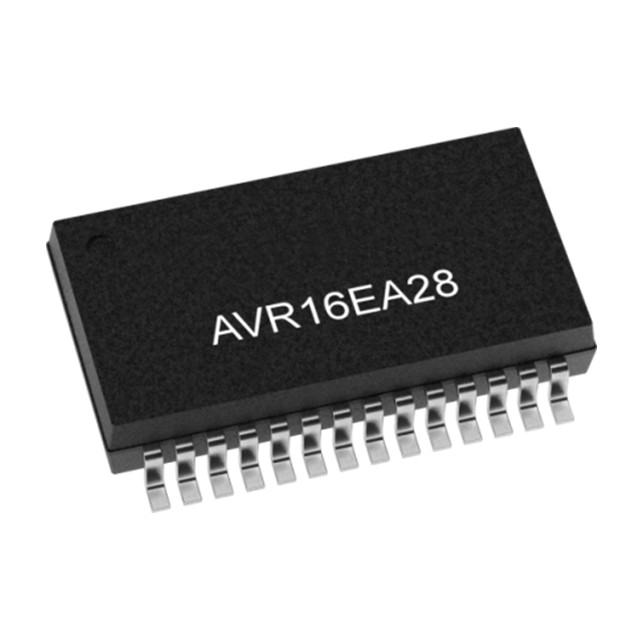

The AVR16EA28-E/SS is an 8-bit microcontroller from Microchip, part of the AVR EA series MCU, with an AVR CPU with hardware multiplier and clock speeds up to 20MHz‌. Its technical specifications and applications are as follows:

Technical Specification

Core processor: AVR

Kernel specification: 8 bits

Speed: 20MHz

Connection capabilities: I2C, IrDA, SMBus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, POR, PWM, WDT

I/O number: 23

Program storage capacity: 16KB (16K x 8)

Program memory type: Flash memory

EEPROM capacity: 512 x 8

RAM size: 2K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.8V - 5.5V

Data converter: A/D 20x12b D/A 1x10b

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Device packaging: 28-SSOP

Application field

The AVR16EA28-E/SS microcontroller is applicable to various application scenarios, including but not limited to:

Industrial control

Consumer products

Household appliances and equipment

Closed-loop control system

Automotive electronics

Internet of Things

Sensor node

Secondary security monitoring

The AVR16EA28-E/SS MCU also features a flexible low-power architecture, including an event system, precise analog subsystems, and advanced digital peripherals.
