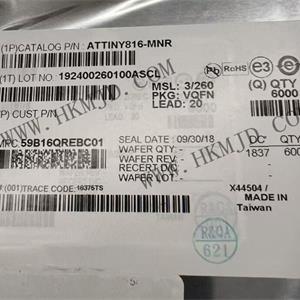

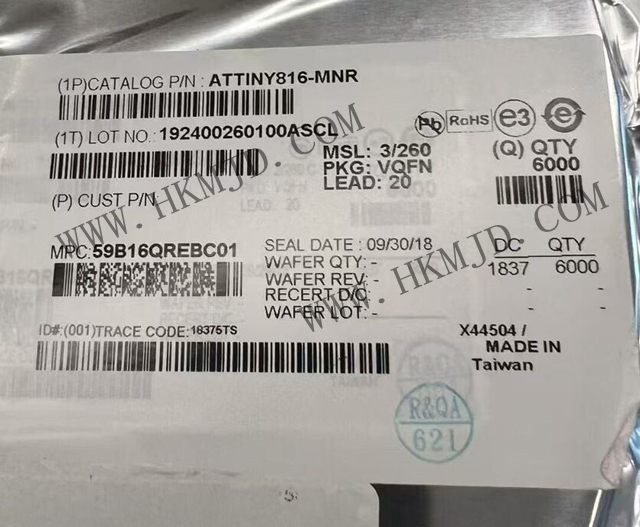

For picture reference, please see the specifications
< >

Commodity Model:ATTINY816-MNR

Trade Name:8-bit Microcontroller -MCU

Brand:Microchip

Particular Year:18+

Package:VQFN-20

Delivery Date:New and Original

Stock: 6000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
ATTINY816-MNR
Package
VQFN-20
Describe
AVR tinyAVR™ 1, Functional Safety (FuSa) Microcontroller IC 8-bit 20MHz 8KB (8K x 8) Flash 20-VQFN (3x3)

Product Description

 ATtiny AVR® 8-bit microcontrollers (MCUs) are optimised for applications requiring high performance, power efficiency and ease of use in a small package.


The ATTINY816-MNR MCU features an 8-bit AVR processor, hardware multiplier running at up to 20MHz, up to 8KB of Flash, 512 bytes of SRAM, 128 bytes of EEPROM, and is available in a 20-pin package. The ATTINY816-MNR device features Atmel picoPower® technology for a flexible, low-power architecture, including Event System and SleepWalking, accurate analogue functionality and advanced peripherals. Capacitive touch interfaces with driver expansion boards are supported by integrated QTouch® peripheral touch controllers. Kernel Independent Peripheral (CIP) technology allows connected peripherals to run independently of the kernel and includes serial communication and analogue peripherals. Event System allows peripherals to communicate without using the CPU, allowing applications to be optimised at the system level. This reduces power consumption and increases throughput and system reliability.


ATTINY816-MNR Product Attributes

Product Category: 8-bit Microcontrollers -MCUs

Core: AVR

Programme memory size: 8 kB

Data RAM size: 512 B

Package / Case: VQFN-20

Maximum clock frequency: 20 MHz

ADC resolution: 10 bit

Number of inputs/outputs: 18 I/Os

Supply voltage - min: 1.8 V

Supply voltage - max: 5.5 V

Mounting style: SMD/SMT

Data bus width: 8 bit

Minimum operating temperature: - 40 C

Maximum operating temperature: + 105 C

Series: ATtiny816

Qualification: AEC-Q100

DAC Resolution: 8 bit

Data Ram Type: SRAM

Data ROM Size: 128 B

Data Rom Type: EEPROM

Interface Type: I2C, SPI, USART

Humidity Sensitivity: Yes

Number of ADC Channels: 12 Channel

Number of Timers/Counters: 3 Timer
