The DRV8145PQPWPRQ1 is a fully integrated half-bridge driver for a wide range of applications. Designed using BiCMOS high power process technology node. The power-packaged monolithic device family provides excellent power handling and heat dissipation while offering compact package size, easy layout, EMI control, accurate current sensing, ruggedness, and diagnostic capabilities. Devices are pin-for-pin identical with scalable RON (current capability) to support different loads.

Product Characteristics

Output Configuration: Half Bridge

Applications: DC motors, solenoids

Interfaces: PWM, SPI

Load Type: Capacitive and Resistive

Technology: Bi-CMOS

Current - Output/Channel: 46A

Voltage - Supply: 4.5V ~ 35V

Voltage - Load: 4.5V ~ 35V

Operating Temperature: -40°C ~ 125°C (TA)

Function: Voltage Conversion Rate Adjustment, Status Flags

Rating: Automotive Grade

Fault Protection: Current Limit, Load Break Detection, Over Temperature, Breakdown, Short Circuit

Mounting Type: Surface Mount

Certification: AEC-Q100

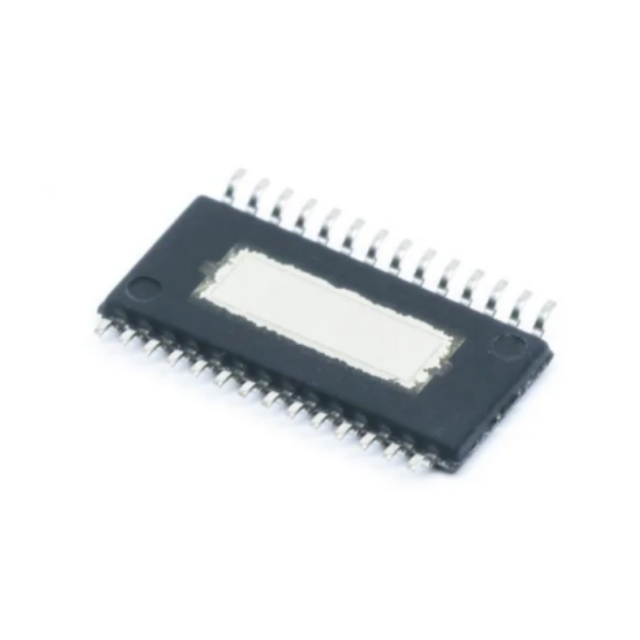

Package/case: 28-PowerTSSOP (0.173", 4.40 mm wide)

Availability: 28-HTSSOP

Applications

● Automotive brush DC motors, solenoid valves

● Door modules, wiper modules, luggage compartment and seat modules

● Body Control Modules (BCM)

● Fuel pumps, water pumps, oil pumps

● Car chargers
