Trade Name:ISL99360BFRZ
Data Manual:ISL99360BFRZ.pdf
Brand:Renesas
Particular Year:21+

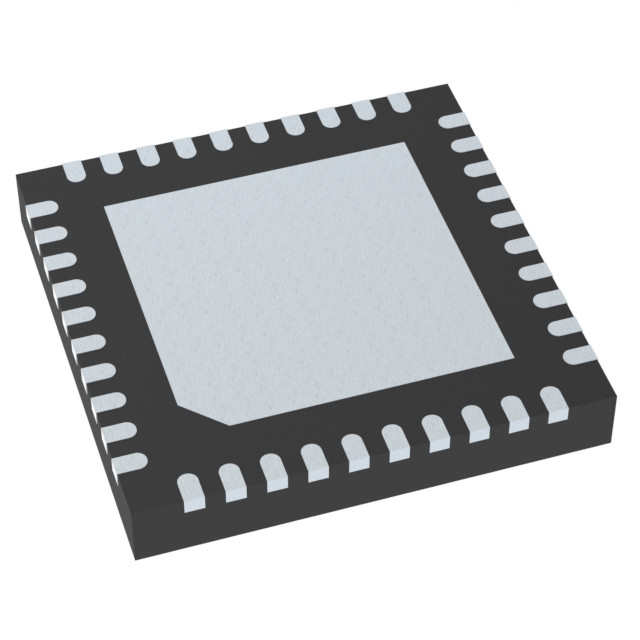

Package:QFN
Delivery Date:New and Original
Stock: 21000pcs
The ISL99360BFRZ are Smart Power Stages (SPS) compatible with the ISL69xxx Digital Multiphase (DMP) controllers and phase doubler (ISL6617A), respectively. The ISL99360B have integrated high accuracy current and temperature monitors that can be fed back to the controller and doubler to complete a multiphase DC/DC system. They simplify design and increase performance by eliminating the DCR sensing network and associated thermal compensation. Light-load efficiency is supported through a dedicated LFET control pin. An industry leading thermally enhanced 5x5 PQFN package allows minimal overall PCB real estate.
Features
• Input range: +3.0V to +16V
• Supports 60A DC current
• ISL99360: 3.3V compatible tri-state PWM input
• ISL99360B: 5.0V compatible tri-state PWM input
• Downslope current sensing
• ±3% accuracy current monitor (IMON) with REFIN input
• 8mV/°C temperature monitor with OT flag
• Dedicated low-side FET control input
• Comprehensive fault protection for high system reliability
○ High-side FET short and overcurrent protection
○ Over-temperature protection
○ VCC and VIN Undervoltage Lockout (UVLO)
• Open-drain fault reporting output
• Up to 1.25MHz switching frequency
• RoHS compliant with Exemption 7a, 32 Ld 5x5 PQFN
Applications
• High frequency and high efficiency VRM and VRD
• Core, graphic, and memory regulators for microprocessors
• High density VR for server, networking, and cloud computing
• POL DC/DC converters and video gaming consoles
