The DRV8935PPWPR provides four half-bridge drivers for industrial applications. The device can be used to drive up to four solenoid loads, two DC motors, a stepper motor or other loads. The output stage of each channel consists of N-channel power MOSFETs in a half-bridge configuration. A simple PWM interface allows easy connection to the controller. Powered from a single supply, it supports a wide 4.5 V to 5 V input supply range. Delivers up to 2.5 A peak or 1.75 A output current per channel, depending on PCB design. Low-power sleep mode is provided for low quiescent current consumption by shutting down the circuitry.

Product Attributes

Output Configuration: Half Bridge (4)

Applications: DC Motors, General Purpose, Solenoids, Stepper Motors

Interfaces: Analogue, Logic, PWM

Load Type: Inductor, Capacitor, Resistor

Technology: Power MOSFET

Switching Resistance (typical) 200 mOhm LS, 200 mOhm HS.

Current - Output/Channel: 2.5A

Current - Peak Output: 2.5A

Voltage - Supply: 4.5V ~ 33V

Voltage - Load: 4.5V ~ 33V

Operating Temperature: -40°C ~ 150°C (TJ)

Function: Charge Pump

Fault Protection: Over Current, Over Temperature, Short Circuit, UVLO

Mounting Type: Surface Mount

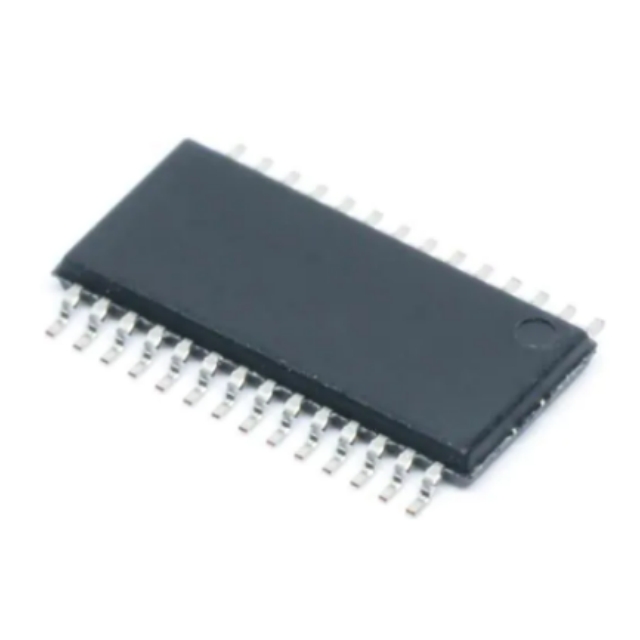

Package/case: 28-PowerTSSOP (0.173", 4.40 mm wide)

Delivery includes: 28-HTSSOP

Applications

● Refrigerator dampers and ice machines

● Textile machines

● Office and home automation

● Factory automation and robotics

● Washing machines, dryers and dishwashers
