The DRV8962DDWR is a wide-voltage, high-power, quad half-bridge driver for a variety of industrial applications. Supporting supply voltages up to 65 V, the integrated MOSFETs (with 50 mΩ on-resistance) enable currents up to 5-A current per output; in the DDV package, output currents up to 10-A per circuit, and can be used to drive up to four solenoid valves or valves, one stepper motor, two brushed-DC motors, one brushless-DC motor, or PMSM motors, and up to two thermoelectric coolers ("PMSMs"). PMSM). The output stage of the device consists of N-channel power MOSFETs. The power MOSFETs are configured as four independent half-bridges, charge pump regulators, current sense and regulation circuits, current sense outputs, and protection circuits.

Product Attributes

Output Configuration: Half Bridge (4)

Application: DC motors, solenoid valves

Interface: PWM

Load Type: Inductive, Resistive

Technology: NMOS

Switching Resistance (typical) 53 mOhm LS, 53 mOhm HS.

Current - Output/Channel: 5A

Current - Peak Output: 8A

Voltage - Supply: 4.5V ~ 65V

Voltage - Load: 4.5V ~ 65V

Operating Temperature: -40°C ~ 125°C (TA)

Functions: Auto Restart, Charge Pump, Status Flags

Fault Protection: Current Limit, ESD, Thermal, UVLO

Mounting Type: Surface Mount

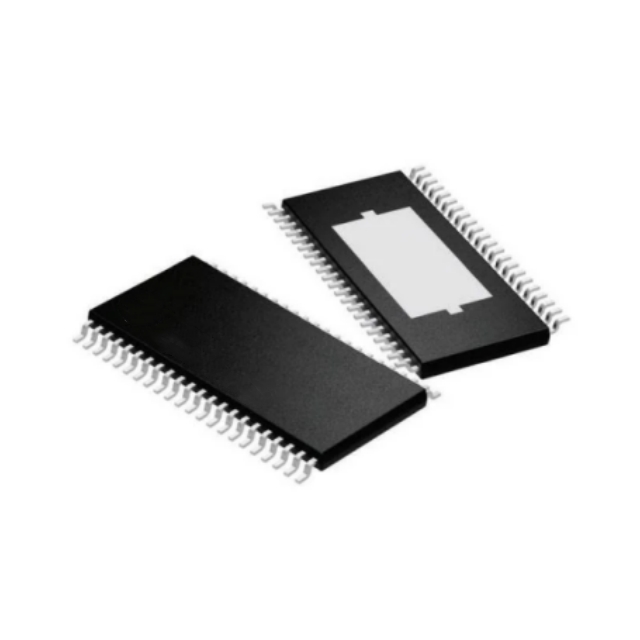

Package/case: 44-PowerTSSOP (0.244", 6.20 mm wide)

Availability: 44-HTSSOP

Applications

● Factory automation, stepper drives and robotics

● Medical imaging, diagnostics and equipment

● Stage lighting

● PLCs

● TEC drives

● Brushless DC motor modules

● Brushed DC motor and stepper motor drives
