The DRV8955PRGER provides four individually controllable half-bridge drivers for industrial applications. They can be used to drive up to four solenoid loads, two DC motors, a stepper motor, or other devices. The output driver for each channel consists of N-channel power MOSFETs configured in the half-bridge. Easily connected to the controller via a simple PWM (IN/IN) interface. Separate inputs are provided for independent control of each half-bridge. In addition the outputs can be connected in parallel to provide more current to the output load. Supports a wide input power range of 4.5 V to 15 V with a single power supply.

Product Attributes

Output Configuration: Half Bridge (4)

Applications: DC motors, solenoids

Interfaces: Logic, PWM

Load Type: Inductive, Resistive

Technology: Power MOSFET

Switching Resistance (typical): 165 milliohms 165 milliohms

Current - Output/Channel: 10A

Current - Peak Output: 10A

Voltage - Supply: 4.5V ~ 48V

Voltage - Load: 4.5V ~ 48V

Operating Temperature: -40°C ~ 125°C

Function: Charge Pump

Fault Protection: Over Current, Over Voltage, UVLO

Mounting Type: Surface Mount

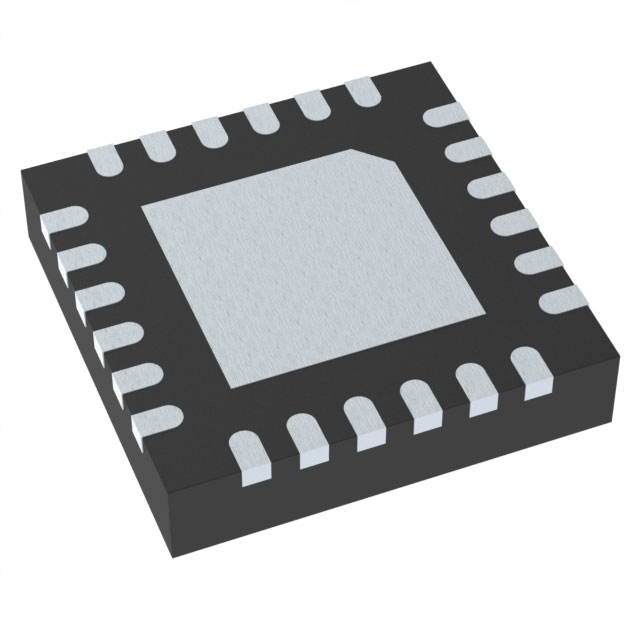

Package/Housing: 24-VFQFN with open area

Power Supply Included: 24-VFQFN (4x4)

Applications

● Refrigerator dampers and ice machines

● Textile machines

● Factory automation and robotics

● Office and home automation

● Washing machines, dryers and dishwashers

● Game consoles

● General purpose electromagnetic loads
