The ADUM1240ARSZ is a 2/0 channel directional micropower, dual-channel, default high level digital isolator based on Analog Devices iCoupler® technology. The isolation device combines high-speed CMOS with single-chip air-core transformer technology, with outstanding performance characteristics over alternatives such as optocouplers, while requiring less power than any existing isolation product. The isolator is ideal for applications such as general-purpose low-power multichannel isolation, 1 MHz low-power SPI, and 4 mA to 20 mA loop process control.

Product attribute

Technology: Magnetic coupling

Type: General

Isolated power supply: None

Number of channels: 2

Enter -Side 1/ side 2:2/0

Channel type: Unidirectional

Voltage - isolation: 3750Vrms

Common-mode transient immunity (min) : 25kV/µs

Data rate: 2Mbps

Propagation delay tpLH/tpHL (maximum) : 180ns, 180ns

Pulse width distortion (Max) : 8ns

Rise/fall time (typical value) : 2ns, 2ns

Voltage - Power supply: 2.25V ~ 3.6V

Operating temperature: -40°C ~ 125°C

Mounting type: Surface mount type

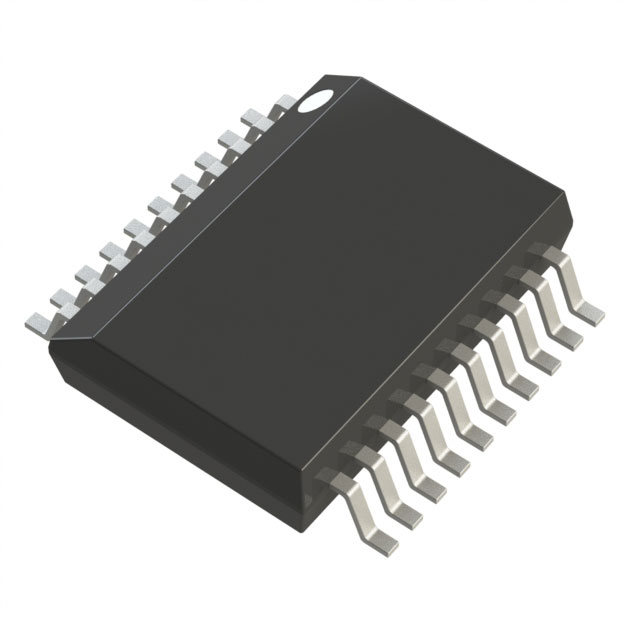

Package/housing: 20-SSOP (0.209", 5.30mm wide)

Supplier device package: 20-SSOP

Basic product number: ADUM1240
