The ADUM4152BRIZ are 7-channel, SPIsolator™ digital isolators optimised for isolated serial peripheral interfaces (SPI). Based on Analog Devices' iCoupler® chip scale transformer technology, the CLK, MO/SI, MI/SO, and SS SPI bus signals have low propagation delays and support SPI clock rates up to 17 MHz. these channels operate with 14 ns, propagation delay, and 1 ns jitter to optimise SPI timing. The isolators also provide three additional independent low data rate isolation channels with three different channel direction combinations.

Product Features

Technology: Magnetic Coupling

Type: SPI

Isolated Power: No

Number of Channels: 7

Inputs - Side 1/Side 2: 4/3

Channel Type: Unidirectional

Voltage - Isolated: 5000 Vrms

Common Mode Transient Immunity (min): 25 kV/µs

Data Rate: 34 Mbps 34 Mbps

Propagation Delay tpLH / tpHL (max): 14ns, 14ns 14ns, 14ns

Pulse width modulation distortion (max): 2ns 2ns

Rise/Fall Time (typical): 2.5ns, 2.5ns 2.5ns, 2.5ns

Voltage - Supply: 3V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

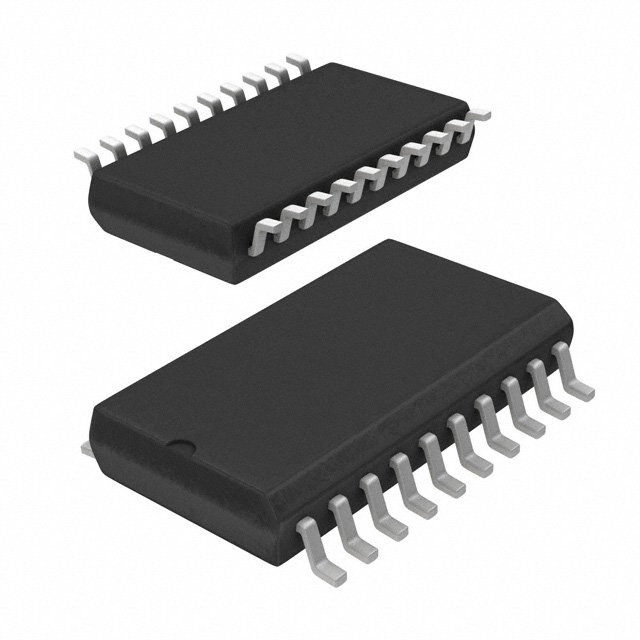

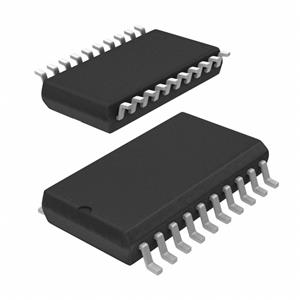

Package/Case: 20-SOIC (0.295" wide, 7.50mm)

Supplier Device Package: 20-SOIC-IC

Applications

● Industrial Programmable Logic Controllers (PLCs)

● Sensor isolation
