The ADS131M04QPWRQ1 device is a 24-bit, Delta-4 channel analog-to-digital converter (ADC) with wide dynamic range, low power consumption, and power measurement specific characteristics. As a result, these devices are well suited for power metering, power metering, and circuit breaker applications. The ADC input can be connected directly to a resistive voltage divider network or a power transformer to measure voltage, or to a current transformer or Rogowski coil to measure current.

Product specification

Number of digits: 24

Sampling rate (second) : 64

Input number: 4

Input type: differential, single - ended

Data interface: SPI

Configuration: ADC

Ratio -S /H:ADC: 0:1

Number of A/D converters: 4

Architecture: Integration triangle

Reference type: -

Voltage - power supply, simulation: 2.4V ~ 3.6V, 2.7V ~ 3.6V

Voltage - power supply, numbers: 1.65V ~ 2V, 2.7V ~ 3.6V

Features: Internal oscillator, PGA, synchronous sampling, temperature sensor

Operating temperature: -40°C ~ 125°C (TA)

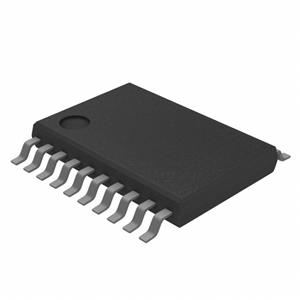

Package/case: 20-TSSOP (0.173", 4.40mm wide)

Supplier component package: 20-TSSOP

Mounting type: surface mount type
