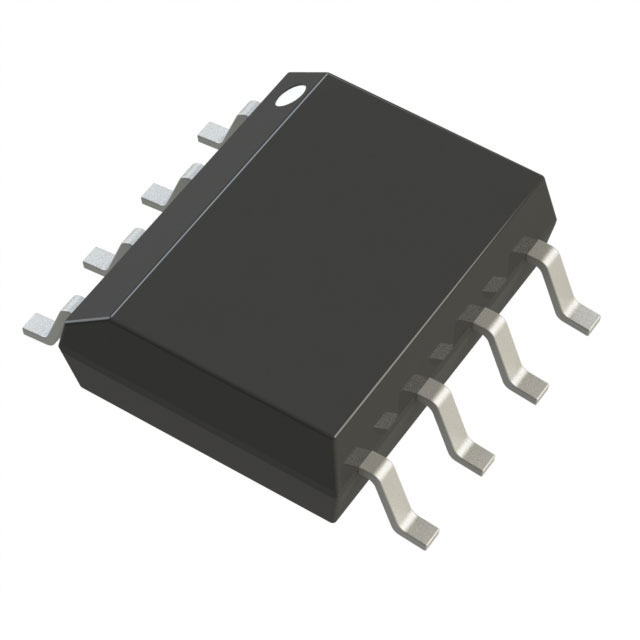

The ADUM7240ARZ is a dual channel digital isolator based on Analogue Devices' iCoupler® technology. These isolators combine high-speed CMOS and monolithic air-core transformer technology to deliver superior performance characteristics over alternative devices such as optocouplers. The dual 1 kV digital isolators are available in a narrow 8-lead SOIC package. They are a cost-effective alternative to 2.5 kV or 5 kV isolators.

Product Characteristics

Technology: Magnetic Coupling

Type: General Purpose

Isolated Power: No

Number of channels: 2

Inputs - Side 1/ Side 2: 2/0

Channel type: Unidirectional

Isolation Voltage: 1000Vrms

Common mode transient immunity (min): 15kV/µs

Data transfer rate: 1Mbps 1Mbps

Propagation delay tpLH / tpHL (max): 75ns, 75ns 75ns, 75ns

Pulse Width Modulation Distortion (max): 25ns 25ns

Rise/Fall Time (typical) 2ns, 2ns

Voltage - Supply: 3V ~ 5.5V

Operating Temperature: -40°C ~ 105°C

Mounting Type: Surface Mount

Package/Case: 8-SOIC (0.154 inch, 3.90 mm wide)

Supplier Device Package: 8-SOIC

Applications

● General purpose multi-channel isolation

● Data converter isolation

● Industrial fieldbus isolation
